Home > Products > Switches > Toggle Switches > G12JHCF

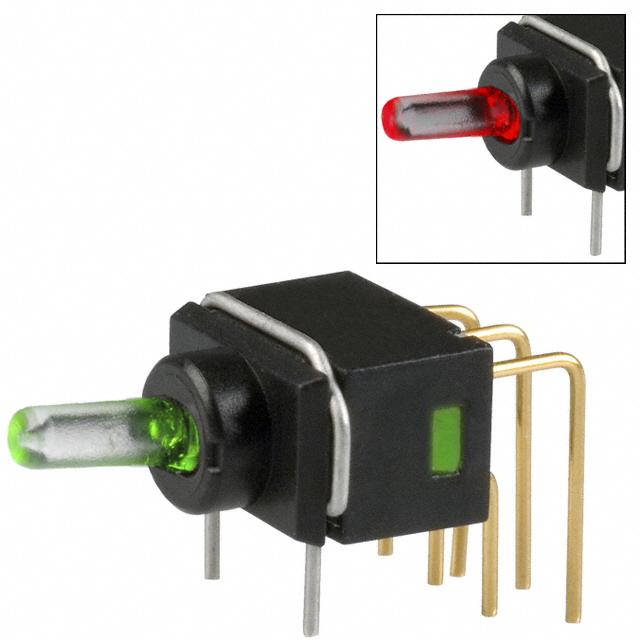

G12JHCF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy G12JHCF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	G12JHCF
Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 17622 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$2.596	$2.468	$2.403	$2.338
	$2.273	$2.143	$1.819	$1.721

Product parameter
Data sheet

Product parameter

Part Number	G12JHCF	Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	17622 pcs	Data sheet	G Series Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	PC Pin
Switch Function	On-On	Series	G
Panel Cutout Dimensions	-	Packaging	Bulk
Other Names	360-1694 360-1694-ND 360-1761 G12JHCF-RO	Operating Temperature	-25°C ~ 85°C
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	5 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	2.0, 2.1 VDC
Illumination Type, Color	LED, Red/Green	Illumination	Illuminated
Features	Process Sealed	Electrical Life	100,000 Cycles
Detailed Description	Toggle Switch SPDT Through Hole, Right Angle	Current Rating	0.4VA (AC/DC)
Circuit	SPDT	Bushing Thread	Unthreaded
Actuator Type	Standard Round	Actuator Material	Polyamide (PA), Nylon, Glass Filled
Actuator Length	3.80mm
