Home > Products > Switches > Toggle Switches > B29AP-GA

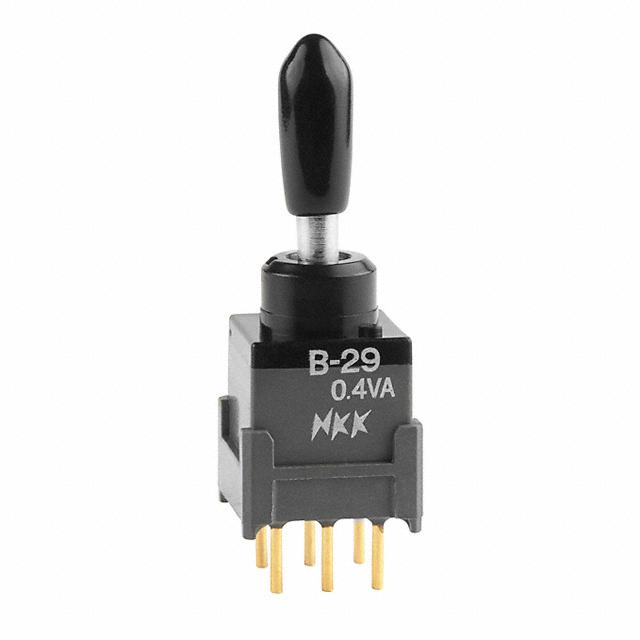

B29AP-GA

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B29AP-GA with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B29AP-GA
Manufacturer	NKK Switches
Description	SWITCH TOGGLE DPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 29890 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.891	$1.799	$1.754	$1.709
	$1.664	$1.529	$1.349	$1.215

Product parameter
Data sheet

Product parameter

Part Number	B29AP-GA	Manufacturer	NKK Switches
Description	SWITCH TOGGLE DPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	29890 pcs	Data sheet	B Series Toggle Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	PC Pin
Switch Function	On-Off-Mom	Series	B
Panel Cutout Dimensions	-	Packaging	Bulk
Operating Temperature	-30°C ~ 85°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Black Cap
Electrical Life	50,000 Cycles	Detailed Description	Toggle Switch DPDT Through Hole
Current Rating	0.4VA (AC/DC)	Circuit	DPDT
Bushing Thread	Unthreaded	Actuator Type	Standard Round with Cap
Actuator Material	Brass, Nickel Plated	Actuator Length	10.00mm
