Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > B290Q-13-F

B290Q-13-F

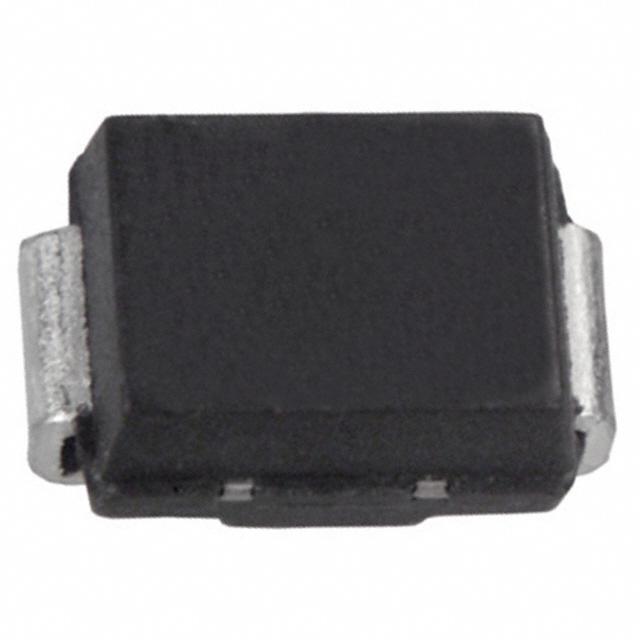

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B290Q-13-F with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B290Q-13-F
Manufacturer	Diodes Incorporated
Description	DIODE SCHOTTKY 90V 2A SMB
Lead Free Status / RoHS Status	Contains lead / RoHS Compliant

~~In Stock~~ 349964 pcs
Reference Price (In US Dollars)	3000 pcs
Reference Price (In US Dollars)	$0.056

Product parameter
Data sheet

Product parameter

Part Number	B290Q-13-F	Manufacturer	Diodes Incorporated
Description	DIODE SCHOTTKY 90V 2A SMB	Lead Free Status / RoHS Status	Contains lead / RoHS Compliant
Quantity Available	349964 pcs	Data sheet	B270Q - B2100Q
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	790mV @ 2A
Voltage - DC Reverse (Vr) (Max)	90V	Supplier Device Package	SMB
Speed	Fast Recovery = 200mA (Io)	Series	Automotive, AEC-Q101
Packaging	Tape & Reel (TR)	Package / Case	DO-214AA, SMB
Operating Temperature - Junction	-65°C ~ 150°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Contains lead / RoHS Compliant	Diode Type	Schottky
Detailed Description	Diode Schottky 90V 2A Surface Mount SMB	Current - Reverse Leakage @ Vr	7µA @ 90V
Current - Average Rectified (Io)	2A	Capacitance @ Vr, F	75pF @ 4V, 1MHz
