Home > Products > Switches > Toggle Switches > B13JJVCF

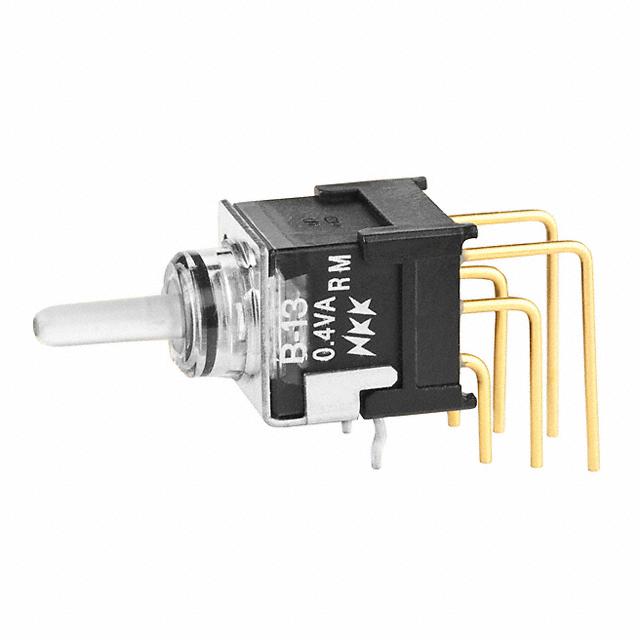

B13JJVCF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B13JJVCF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B13JJVCF
Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 19436 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$2.975	$2.896	$2.818	$2.661
	$2.583	$2.505	$2.113	$2.035

Product parameter
Data sheet

Product parameter

Part Number	B13JJVCF	Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	19436 pcs	Data sheet	B Series Subminiture illuminate Toggle
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	PC Pin
Switch Function	On-Off-On	Series	B
Panel Cutout Dimensions	-	Packaging	Bulk
Other Names	B13JJVCF-RO B13JJVCF-RO-ND	Operating Temperature	-25°C ~ 55°C
Mounting Type	Through Hole, Right Angle, Vertical	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	1.95, 3.3 VDC
Illumination Type, Color	LED, Red/Green	Illumination	Illuminated
Features	Epoxy Sealed Terminals	Electrical Life	50,000 Cycles
Detailed Description	Toggle Switch SPDT Through Hole, Right Angle, Vertical	Current Rating	0.4VA (AC/DC)
Circuit	SPDT	Bushing Thread	Unthreaded
Actuator Type	Standard Round	Actuator Material	Polyamide (PA), Nylon
Actuator Length	6.30mm
