Home > Products > Switches > Toggle Switches > B13JJPCF

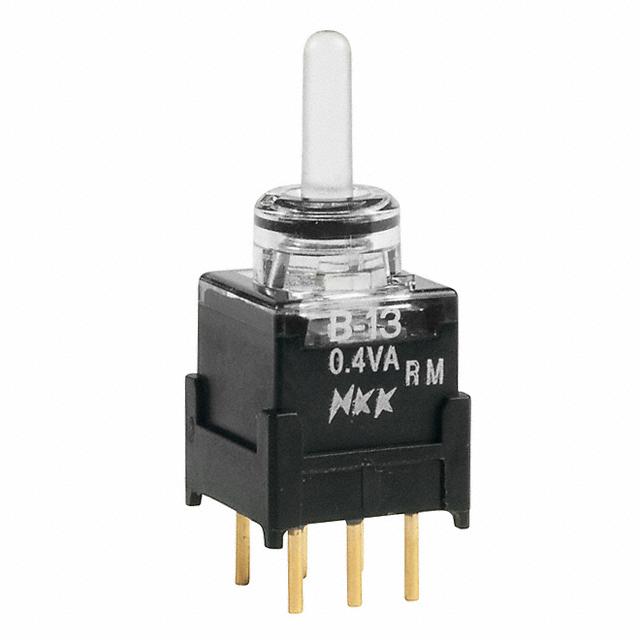

B13JJPCF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B13JJPCF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B13JJPCF
Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 11566 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$2.797

Product parameter
Data sheet

Product parameter

Part Number	B13JJPCF	Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	11566 pcs	Data sheet	B Series Subminiture illuminate Toggle
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	PC Pin
Switch Function	On-Off-On	Series	B
Panel Cutout Dimensions	-	Packaging	Bulk
Other Names	B13JJPCF-RO B13JJPCF-RO-ND	Operating Temperature	-25°C ~ 55°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	1.95, 3.3 VDC
Illumination Type, Color	LED, Red/Green	Illumination	Illuminated
Features	Epoxy Sealed Terminals	Electrical Life	50,000 Cycles
Detailed Description	Toggle Switch SPDT Through Hole	Current Rating	0.4VA (AC/DC)
Circuit	SPDT	California Prop 65	Warning Information WARNING: This product can expose you to chemicals including Antimony oxide (Antimony trioxide) and Nickel (Metallic) which are known to the State of California to cause cancer. For more information go to www.P65warnings.ca.gov.
Bushing Thread	Unthreaded	Actuator Type	Standard Round
Actuator Material	Polyamide (PA), Nylon	Actuator Length	6.30mm
