Home > Products > Switches > Toggle Switches > B12JP

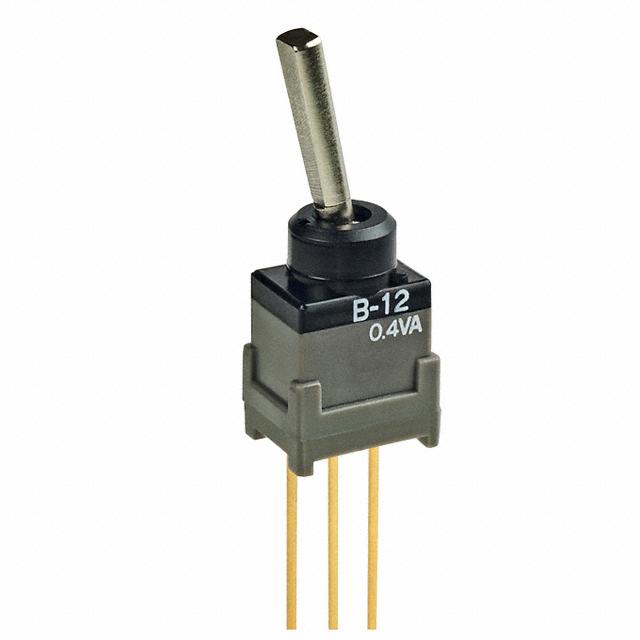

B12JP

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B12JP with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B12JP
Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 49639 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$1.292	$1.239	$1.185	$1.131	$1.024
	$0.943	$0.862	$0.754	$0.727

Product parameter
Data sheet

Product parameter

Part Number	B12JP	Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	49639 pcs	Data sheet	B Series Toggle Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	PC Pin
Switch Function	On-On	Series	B
Panel Cutout Dimensions	-	Packaging	Bulk
Other Names	360-3783 B12JP-ND	Operating Temperature	-30°C ~ 85°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Epoxy Sealed Terminals
Electrical Life	50,000 Cycles	Detailed Description	Toggle Switch SPDT Through Hole
Current Rating	0.4VA (AC/DC)	Circuit	SPDT
Bushing Thread	Unthreaded	Actuator Type	Standard Round
Actuator Material	Brass, Nickel Plated	Actuator Length	6.30mm
