Home > Products > Switches > Toggle Switches > B12JJPCF

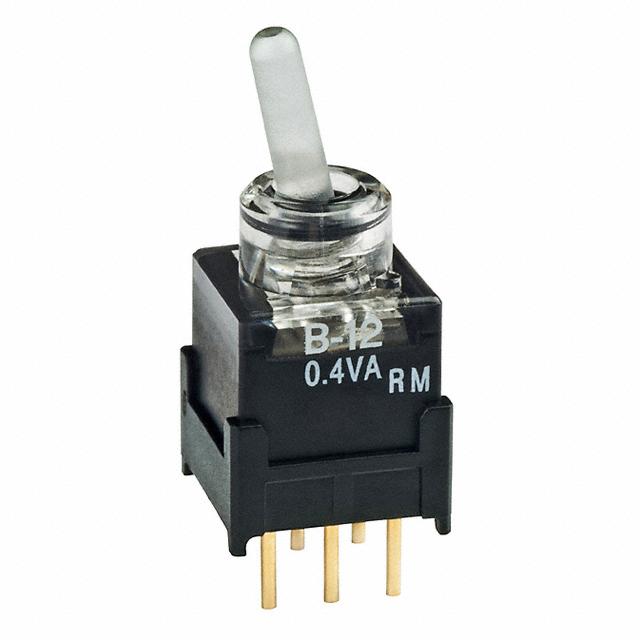

B12JJPCF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B12JJPCF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B12JJPCF
Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 17737 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$2.827	$2.685	$2.615	$2.544
	$2.473	$2.332	$1.979	$1.873

Product parameter
Data sheet

Product parameter

Part Number	B12JJPCF	Manufacturer	NKK Switches
Description	SWITCH TOGGLE SPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	17737 pcs	Data sheet	B Series Subminiture illuminate Toggle
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	PC Pin
Switch Function	On-On	Series	B
Panel Cutout Dimensions	-	Packaging	Bulk
Other Names	360-2774 B12JJPCF-ND B12JJPCF-RO B12JJPCF-RO-ND	Operating Temperature	-25°C ~ 55°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	1.95, 3.3 VDC
Illumination Type, Color	LED, Red/Green	Illumination	Illuminated
Features	Epoxy Sealed Terminals	Electrical Life	50,000 Cycles
Detailed Description	Toggle Switch SPDT Through Hole	Current Rating	0.4VA (AC/DC)
Circuit	SPDT	Bushing Thread	Unthreaded
Actuator Type	Standard Round	Actuator Material	Polyamide (PA), Nylon
Actuator Length	6.30mm
