Home > Products > Switches > Pushbutton Switches > AB15AV1

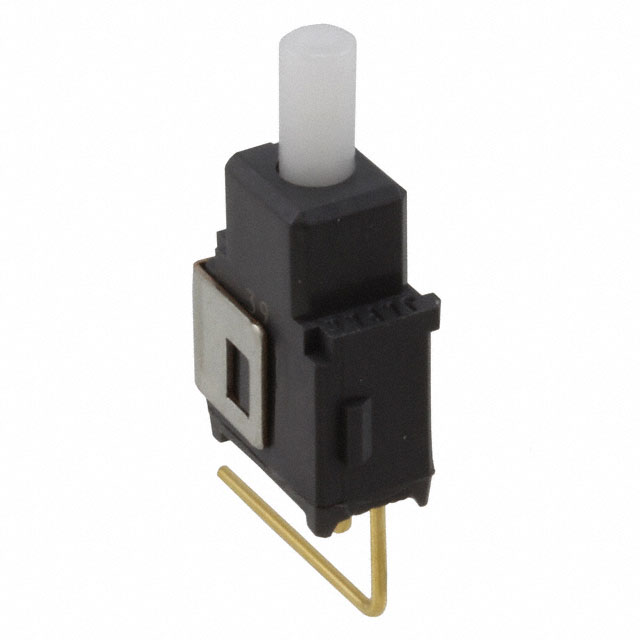

AB15AV1

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AB15AV1 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	AB15AV1
Manufacturer	NKK Switches
Description	SWITCH PUSH SPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 23403 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs
Reference Price (In US Dollars)	$1.666	$1.587

Product parameter
Data sheet

Product parameter

Part Number	AB15AV1	Manufacturer	NKK Switches
Description	SWITCH PUSH SPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	23403 pcs	Data sheet	AB Series Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Type	Standard
Termination Style	PC Pin	Switch Function	On-Mom
Series	AB	Panel Cutout Dimensions	-
Packaging	Tray	Other Names	360-3016 AB15AV1-ND
Operating Temperature	-30°C ~ 85°C	Mounting Type	Through Hole, Right Angle, Vertical
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	50,000 Cycles
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	Sealed - Fully
Electrical Life	50,000 Cycles	Detailed Description	Pushbutton Switch SPDT Standard Through Hole, Right Angle, Vertical
Current Rating	0.4VA (AC/DC)	Color - Actuator/Cap	White
Circuit	SPDT	California Prop 65	Warning Information WARNING: This product can expose you to chemicals including Antimony oxide (Antimony trioxide) and Nickel (Metallic) which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.
Actuator Type	Plunger for Cap
