Home > Products > Switches > Pushbutton Switches > AB15AV-FA

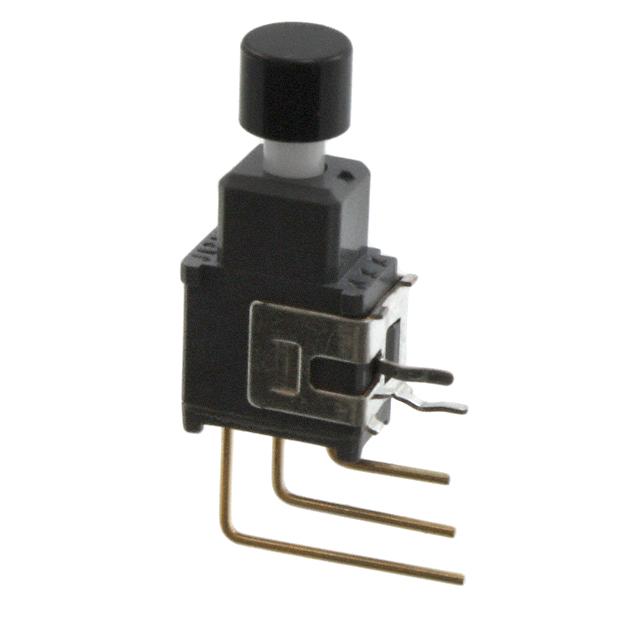

AB15AV-FA

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AB15AV-FA with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	AB15AV-FA
Manufacturer	NKK Switches
Description	SWITCH PUSH SPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 25198 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.799	$1.712	$1.626	$1.583
	$1.541	$1.455	$1.369	$1.241

Product parameter
Data sheet

Product parameter

Part Number	AB15AV-FA	Manufacturer	NKK Switches
Description	SWITCH PUSH SPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	25198 pcs	Data sheet	AB Series Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Type	Standard
Termination Style	PC Pin	Switch Function	On-Mom
Series	AB	Panel Cutout Dimensions	-
Packaging	Tray	Other Names	360-2608 AB15AV-FA-ND AB15AV-FA-RO AB15AV-FA-RO-ND AB15AVFA
Operating Temperature	-30°C ~ 85°C	Mounting Type	Through Hole, Right Angle, Vertical
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	50,000 Cycles
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	Sealed - Fully
Electrical Life	50,000 Cycles	Detailed Description	Pushbutton Switch SPDT Standard Through Hole, Right Angle, Vertical
Current Rating	0.4VA (AC/DC)	Color - Actuator/Cap	Black
Circuit	SPDT	Actuator Type	Round, Button
