Home > Products > Switches > Toggle Switches > A23EV

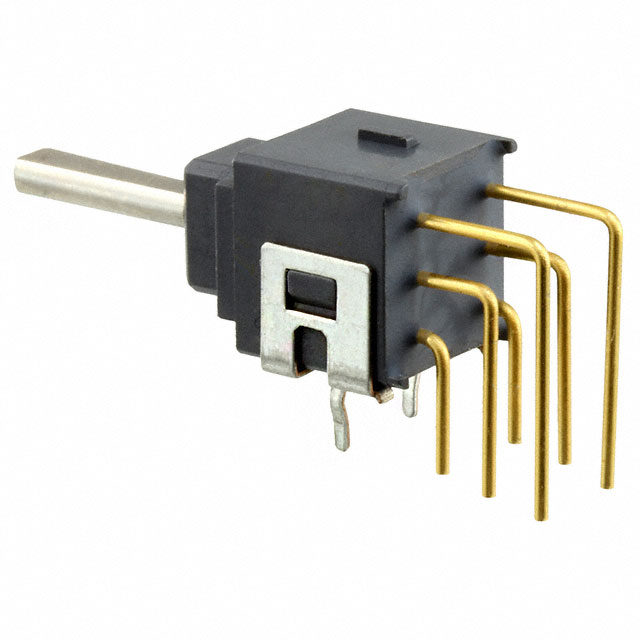

A23EV

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy A23EV with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	A23EV
Manufacturer	NKK Switches
Description	SWITCH TOGGLE DPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 26847 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$2.191	$2.081	$2.026	$1.972
	$1.917	$1.807	$1.533	$1.451

Product parameter
Data sheet

Product parameter

Part Number	A23EV	Manufacturer	NKK Switches
Description	SWITCH TOGGLE DPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	26847 pcs	Data sheet	A Series Toggle Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	PC Pin
Switch Function	On-Off-On	Series	A
Panel Cutout Dimensions	-	Packaging	Bulk
Operating Temperature	-30°C ~ 85°C	Mounting Type	Through Hole, Right Angle, Vertical
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Process Sealed
Electrical Life	50,000 Cycles	Detailed Description	Toggle Switch DPDT Through Hole, Right Angle, Vertical
Current Rating	0.4VA (AC/DC)	Circuit	DPDT
Bushing Thread	Unthreaded, Square	Actuator Type	Flatted
Actuator Material	Brass, Nickel Plated	Actuator Length	10.00mm
