Home > Products > Switches > Toggle Switches > A23AW

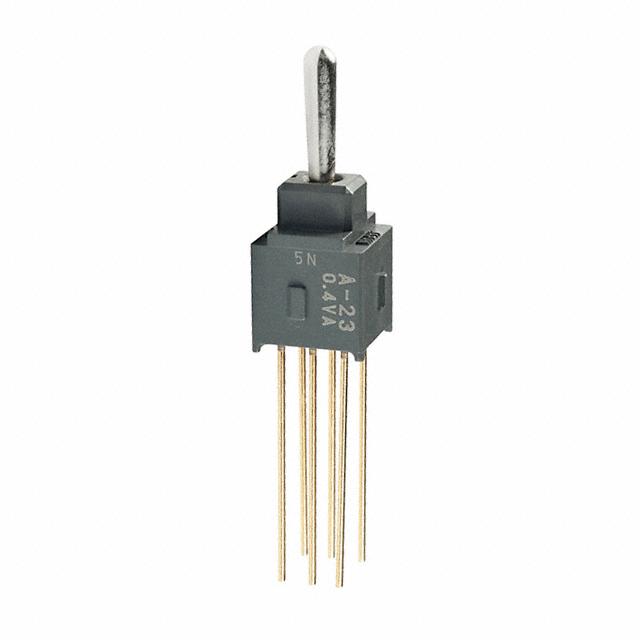

A23AW

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy A23AW with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	A23AW
Manufacturer	NKK Switches
Description	SWITCH TOGGLE DPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 20085 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$1.664

Product parameter
Data sheet

Product parameter

Part Number	A23AW	Manufacturer	NKK Switches
Description	SWITCH TOGGLE DPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	20085 pcs	Data sheet	A Series Toggle Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	Wire Wrap
Switch Function	On-Off-On	Series	A
Panel Cutout Dimensions	-	Packaging	Bulk
Operating Temperature	-30°C ~ 85°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Process Sealed	Electrical Life	50,000 Cycles
Detailed Description	Toggle Switch DPDT Through Hole	Current Rating	0.4VA (AC/DC)
Circuit	DPDT	Bushing Thread	Unthreaded, Square
Actuator Type	Standard Round	Actuator Material	Brass, Nickel Plated
Actuator Length	10.00mm
