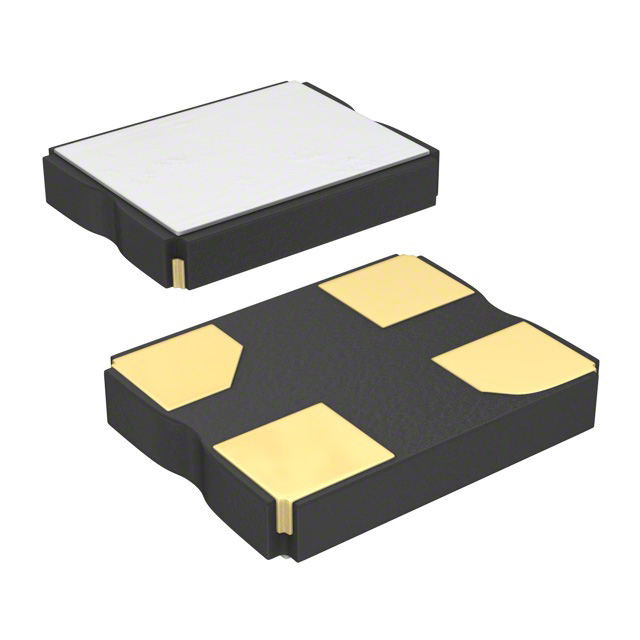

NX2520SG-19.2M-STD-CTX-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NX2520SG-19.2M-STD-CTX-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NX2520SG-19.2M-STD-CTX-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NX2520SG-19.2M-STD-CTX-1 |
|---|---|
| Manufacturer | NDK |
| Description | CRYSTAL 19.2000MHZ 7PF SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | ||
|---|---|---|---|---|---|
| $0.389 | $0.343 | $0.321 | |||
| 100 pcs | 500 pcs | 1000 pcs | |||
| $0.283 | $0.268 | $0.224 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | NX2520SG-19.2M-STD-CTX-1 | Manufacturer | NDK |
|---|---|---|---|
| Description | CRYSTAL 19.2000MHZ 7PF SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 104115 pcs | Data sheet | NX2520SG |
| Category | Crystals, Oscillators, Resonators | Type | MHz Crystal |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | Series | NX2520SG |
| Ratings | - | Packaging | Cut Tape (CT) |
| Package / Case | 4-SMD, No Lead | Other Names | 644-1210-1 |
| Operating Temperature | -30°C ~ 85°C | Operating Mode | Fundamental |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 12 Weeks | Load Capacitance | 7pF |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.039" (1.00mm) |
| Frequency Tolerance | ±10ppm | Frequency Stability | ±12ppm |
| Frequency | 19.2MHz | ESR (Equivalent Series Resistance) | 70 Ohms |
| Detailed Description | 19.2MHz ±10ppm Crystal 7pF 70 Ohms 4-SMD, No Lead |
