NX2520SA-26MHZ-EXS00A-CS05497

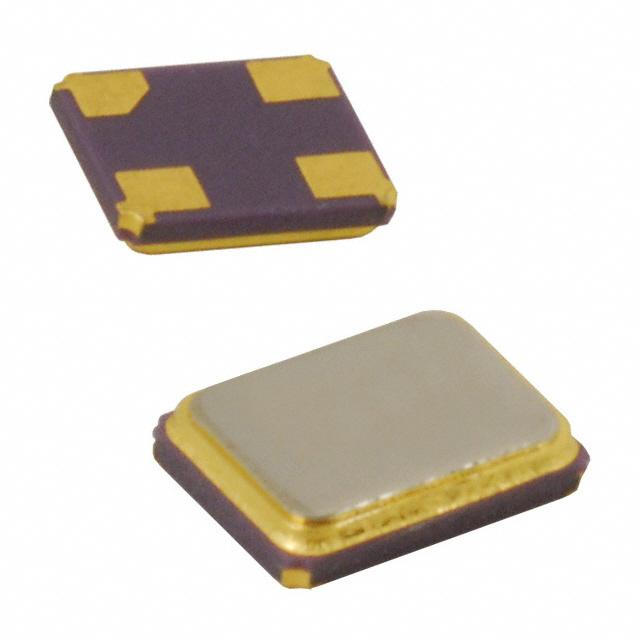

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NX2520SA-26MHZ-EXS00A-CS05497 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NX2520SA-26MHZ-EXS00A-CS05497 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NX2520SA-26MHZ-EXS00A-CS05497 |
|---|---|
| Manufacturer | NDK |
| Description | CRYSTAL 26.0000MHZ 6PF SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.283 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | NX2520SA-26MHZ-EXS00A-CS05497 | Manufacturer | NDK |
|---|---|---|---|
| Description | CRYSTAL 26.0000MHZ 6PF SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 78910 pcs | Data sheet | NX2520SA-26MHZ-EXS00A-CS05497 |
| Category | Crystals, Oscillators, Resonators | Type | MHz Crystal |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | Series | NX2520SA |
| Ratings | - | Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead | Other Names | 644-1209-2 |
| Operating Temperature | -40°C ~ 85°C | Operating Mode | Fundamental |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 12 Weeks | Load Capacitance | 6pF |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.022" (0.55mm) |
| Frequency Tolerance | ±15ppm | Frequency Stability | ±10ppm |
| Frequency | 26MHz | ESR (Equivalent Series Resistance) | 60 Ohms |
| Detailed Description | 26MHz ±15ppm Crystal 6pF 60 Ohms 4-SMD, No Lead |
