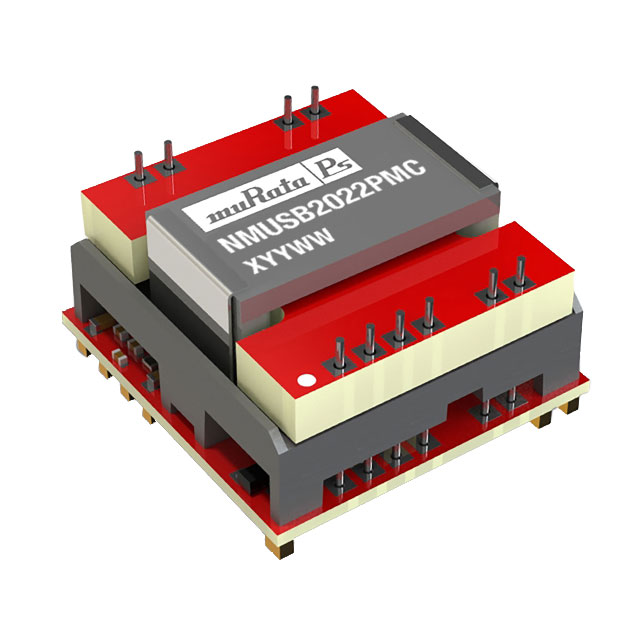

NMUSB2022PMC-R7
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NMUSB2022PMC-R7 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NMUSB2022PMC-R7 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NMUSB2022PMC-R7 |
|---|---|
| Manufacturer | Murata Power Solutions |
| Description | POWERED DUAL PORT USB DATA ISOLA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 23 pcs | 46 pcs | 115 pcs | ||
|---|---|---|---|---|---|
| $16.124 | $14.912 | $13.98 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | NMUSB2022PMC-R7 | Manufacturer | Murata Power Solutions |
|---|---|---|---|
| Description | POWERED DUAL PORT USB DATA ISOLA | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2435 pcs | Data sheet | NMUSB2022PMC Datasheet |
| Category | Isolators | Voltage - Supply | - |
| Voltage - Isolation | 4000Vrms | Type | USB |
| Technology | Capacitive Coupling | Supplier Device Package | Module |
| Series | - | Rise / Fall Time (Typ) | - |
| Pulse Width Distortion (Max) | - | Propagation Delay tpLH / tpHL (Max) | - |
| Packaging | Tape & Reel (TR) | Package / Case | 13-SMD Module |
| Other Names | 811-3478-2 | Operating Temperature | -40°C ~ 85°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Isolated Power | Yes |
| Inputs - Side 1/Side 2 | - | Detailed Description | USB Digital Isolator 4000Vrms 1 Channel 12Mbps 25kV/µs CMTI 13-SMD Module |
| Data Rate | 12Mbps | Common Mode Transient Immunity (Min) | 25kV/µs |
| Channel Type | Unidirectional |
