SI8710BD-B-IS

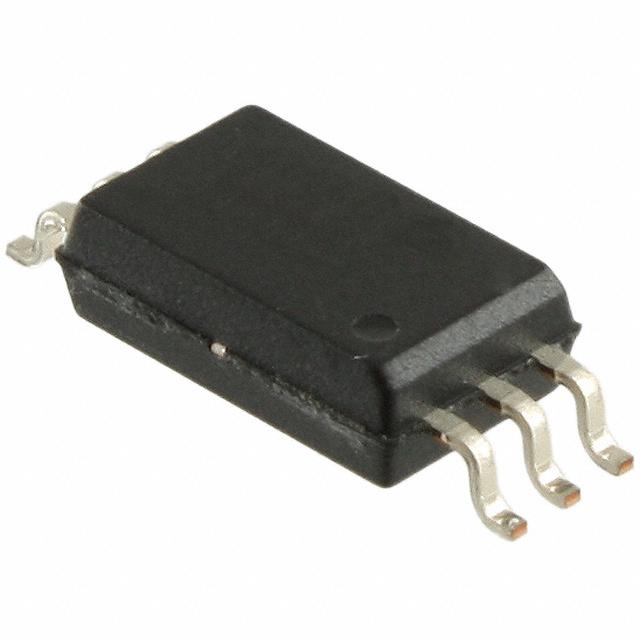

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SI8710BD-B-IS with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SI8710BD-B-IS with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SI8710BD-B-IS |
|---|---|
| Manufacturer | Energy Micro (Silicon Labs) |
| Description | DGTL ISO 5KV 1CH GEN PURP 6DIPGW |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 25 pcs | 100 pcs | 1000 pcs | |
|---|---|---|---|---|---|
| $0.524 | $0.504 | $0.485 | $0.45 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SI8710BD-B-IS | Manufacturer | Energy Micro (Silicon Labs) |
|---|---|---|---|
| Description | DGTL ISO 5KV 1CH GEN PURP 6DIPGW | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 68422 pcs | Data sheet | Si87xx |
| Category | Isolators | Voltage - Supply | 3 V ~ 30 V |
| Voltage - Isolation | 5000Vrms | Type | General Purpose |
| Technology | Capacitive Coupling | Supplier Device Package | 6-SDIP Gull Wing |
| Series | - | Rise / Fall Time (Typ) | 15ns, 5ns |
| Pulse Width Distortion (Max) | 20ns | Propagation Delay tpLH / tpHL (Max) | 60ns, 60ns |
| Packaging | Tube | Package / Case | 6-SOIC (0.295", 7.50mm Width) |
| Other Names | 336-2377 SI8710BDBIS |
Operating Temperature | -40°C ~ 125°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Isolated Power | No |
| Inputs - Side 1/Side 2 | 1/0 | Detailed Description | General Purpose Digital Isolator 5000Vrms 1 Channel 15Mbps 35kV/µs CMTI 6-SOIC (0.295", 7.50mm Width) |
| Data Rate | 15Mbps | Common Mode Transient Immunity (Min) | 35kV/µs |
| Channel Type | Unidirectional |
