NFL15ST157X0J3D

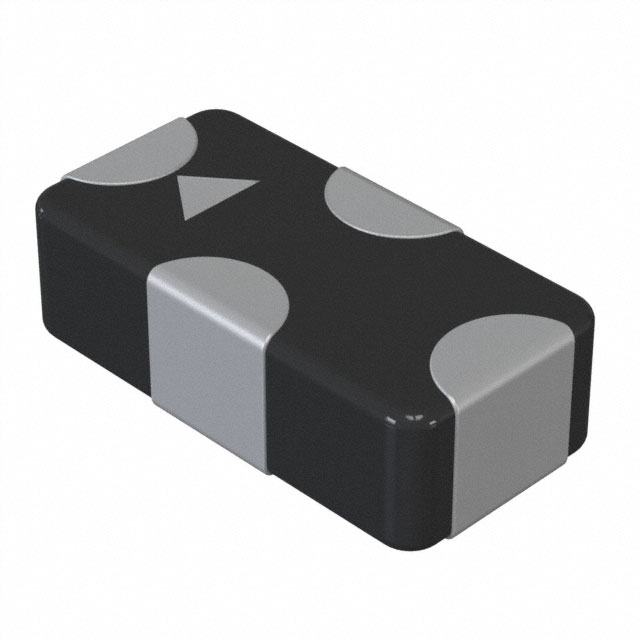

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NFL15ST157X0J3D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NFL15ST157X0J3D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NFL15ST157X0J3D |
|---|---|
| Manufacturer | Murata Electronics |
| Description | FILTER LC(T) 115NH/22PF SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10000 pcs | 30000 pcs | |||
|---|---|---|---|---|---|
| $0.091 | $0.087 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | NFL15ST157X0J3D | Manufacturer | Murata Electronics |
|---|---|---|---|
| Description | FILTER LC(T) 115NH/22PF SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 222943 pcs | Data sheet | EMI Suppression Filters CatalogNFL15STyy7X0J3y Spec |
| Category | Filters | Voltage - Rated | 6.3V |
| Values | L = 115nH, C = 22pF | Type | Low Pass |
| Technology | LC (T-Type) | Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Series | EMIFIL®, NFL15 | Resistance - Channel (Ohms) | - |
| Packaging | Tape & Reel (TR) | Package / Case | 0402 (1005 Metric), 4 PC Pad |
| Other Names | 490-16916-2 NFL15ST157X0J3D-ND |
Operating Temperature | -40°C ~ 85°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height | 0.014" (0.35mm) |
| Filter Order | 3rd | ESD Protection | No |
| Detailed Description | LC (T-Type) EMI Filter 3rd Order Low Pass 1 Channel L = 115nH, C = 22pF 50mA 0402 (1005 Metric), 4 PC Pad | Current | 50mA |
| Center / Cutoff Frequency | 150MHz (Cutoff) | Attenuation Value | 6dB @ 0MHz ~ 150MHz |
| Applications | General Purpose |
