2506-3-00-44-00-00-07-0

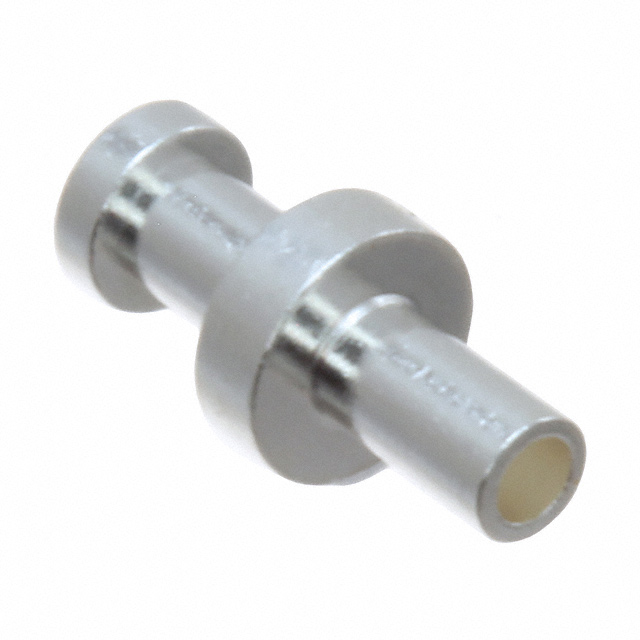

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2506-3-00-44-00-00-07-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2506-3-00-44-00-00-07-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2506-3-00-44-00-00-07-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | TERM TURRET SINGLE L=3.96MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.311 | $0.273 | $0.257 | $0.246 | $0.236 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.214 | $0.193 | $0.171 | $0.155 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2506-3-00-44-00-00-07-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | TERM TURRET SINGLE L=3.96MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 120899 pcs | Data sheet | Solder Terminal Turrets (metric)Solder Terminal Turrets (in.) |
| Category | Connectors, Interconnects | Termination | Swage |
| Terminal Type | Single End | Staking Side OD | 0.062" (1.57mm) |
| Staking Side ID | 0.043" (1.09mm) | Series | 2506 |
| Other Names | 2506-300440000070 2506-300440000070-ND 2506300440000070 ED11399 |
Number of Turrets | Single |
| Mounting Type | Through Hole | Mounting Hole Diameter | 0.067" (1.70mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | - |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.271" (6.88mm) |
| Length - Below Flange | 0.115" (2.92mm) | Length - Above Board | 0.156" (3.96mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | - |
| Insulation | Non-Insulated | Flange Diameter | 0.125" (3.18mm) |
| Diameter - Turret Head | 0.093" (2.36mm) | Detailed Description | Terminal Turret Connector Single End 0.156" (3.96mm) Silver |
| Contact Material | Brass Alloy | Contact Finish Thickness | 300.0µin (7.62µm) |
| Contact Finish | Silver | Board Thickness | 0.094" (2.39mm) |
