Home > Products > Transformers > Switching Converter, SMPS Transformers > 750314624

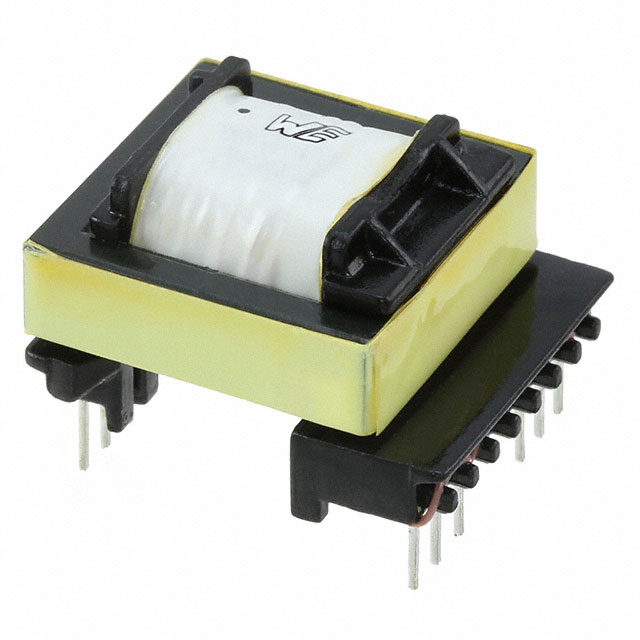

750314624

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 750314624 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	750314624
Manufacturer	Midcom / Wurth Electronics
Description	XFRMR ISOL BUCK DC/DC CONV TH
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	140 pcs	280 pcs	560 pcs
~~In Stock~~ 19213 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	70 pcs
	$3.016	$2.793	$2.539
	$2.308	$2.098	$1.908

Product parameter
Data sheet

Product parameter

Part Number	750314624	Manufacturer	Midcom / Wurth Electronics
Description	XFRMR ISOL BUCK DC/DC CONV TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	19213 pcs	Data sheet	750314624 Drawing
Category	Transformers	Voltage - Primary	17 ~ 35V
Voltage - Isolation	5000Vrms	Voltage - Auxiliary	-
Type	For DC/DC Converters	Size / Dimension	0.874" L x 0.984" W (22.20mm x 25.00mm)
Series	MID-IBTI	Other Names	1297-1148
Operating Temperature	-40°C ~ 125°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Intended Chipset	-
Inductance @ Frequency	60µH @ 10kHz	Height - Seated (Max)	0.635" (16.13mm)
Frequency	250 ~ 600kHz	Footprint	0.874" L x 0.984" W (22.20mm x 25.00mm)
Chipset Manufacturer	Texas Instruments	Applications	Isolated Buck Converters
