Home > Products > Transformers > Switching Converter, SMPS Transformers > 750314288

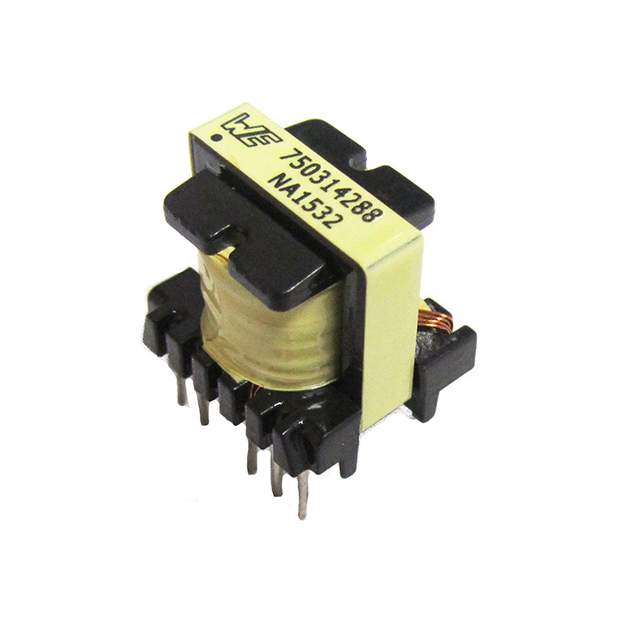

750314288

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 750314288 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	750314288
Manufacturer	Midcom / Wurth Electronics
Description	FLYBACK TRANSFORMER WE-FB
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 27221 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	50 pcs	100 pcs	200 pcs
Reference Price (In US Dollars)	$1.939	$1.841	$1.712	$1.55	$1.421

Product parameter
Data sheet

Product parameter

Part Number	750314288	Manufacturer	Midcom / Wurth Electronics
Description	FLYBACK TRANSFORMER WE-FB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	27221 pcs	Data sheet	750314288 Drawing
Category	Transformers	Voltage - Primary	120 ~ 375V
Voltage - Isolation	2500Vrms	Voltage - Auxiliary	-
Type	For AC/DC Converters	Style	-
Series	WE-UNIT, MID-OLSTM	Other Names	1297-1291
Operating Temperature	-40°C ~ 125°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Intended Chipset	-
Inductance @ Frequency	2.5mH @ 10kHz	Height - Seated (Max)	0.740" (18.80mm)
Frequency	60kHz	Chipset Manufacturer	STMicroelectronics
Applications	Flyback Converters
