Home > Products > Transformers > Switching Converter, SMPS Transformers > 750313823

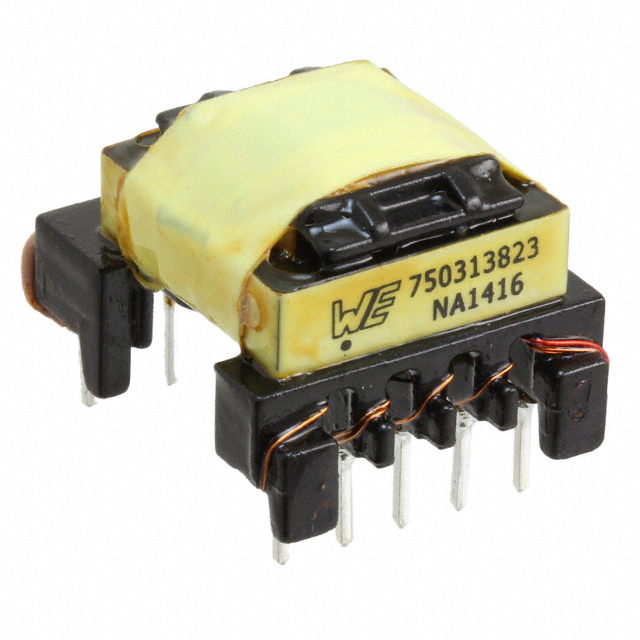

750313823

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 750313823 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	750313823
Manufacturer	Midcom / Wurth Electronics
Description	WE-UNIT OFFLINE TRANSFORMER
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 17247 pcs
Reference Price (In US Dollars)	70 pcs
Reference Price (In US Dollars)	$1.94

Product parameter
Data sheet

Product parameter

Part Number	750313823	Manufacturer	Midcom / Wurth Electronics
Description	WE-UNIT OFFLINE TRANSFORMER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	17247 pcs	Data sheet	750313823 Drawing
Category	Transformers	Voltage - Primary	120 ~ 375V
Voltage - Isolation	4500Vrms	Voltage - Auxiliary	25V @ 10mA
Type	For AC/DC Converters	Size / Dimension	-
Series	WE-UNIT, MID-OLTI	Packaging	Tray
Other Names	1297-1124	Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Intended Chipset	UCC287xx, UCC289xx	Inductance @ Frequency	367µH @ 10kHz
Height - Seated (Max)	0.655" (16.64mm)	Frequency	80kHz
Footprint	0.800" L x 0.960" W (20.32mm x 24.38mm)	Chipset Manufacturer	Texas Instruments
Applications	Flyback Converters
