Home > Products > Transformers > Switching Converter, SMPS Transformers > 750313747

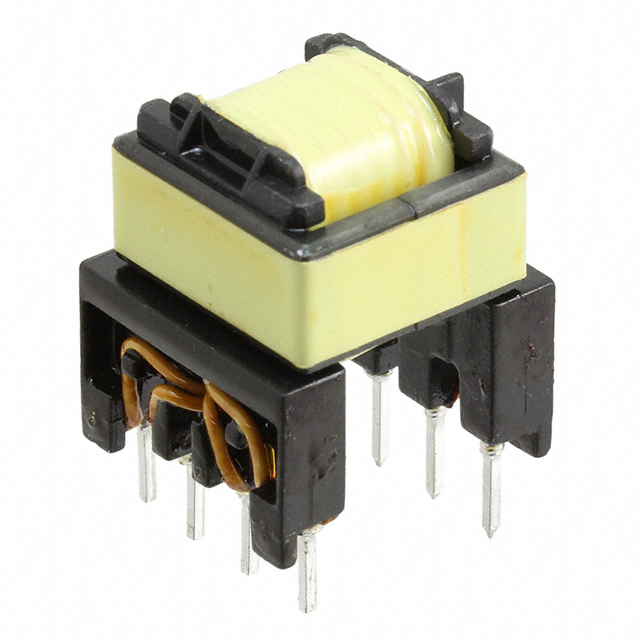

750313747

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 750313747 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	750313747
Manufacturer	Midcom / Wurth Electronics
Description	WE-UNIT OFFLINE TRANSFORMER
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 20039 pcs
Reference Price (In US Dollars)	130 pcs
Reference Price (In US Dollars)	$1.617

Product parameter
Data sheet

Product parameter

Part Number	750313747	Manufacturer	Midcom / Wurth Electronics
Description	WE-UNIT OFFLINE TRANSFORMER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	20039 pcs	Data sheet	750313747 Drawing
Category	Transformers	Voltage - Primary	85 ~ 265V
Voltage - Isolation	3500Vrms	Voltage - Auxiliary	20V
Type	For AC/DC Converters	Size / Dimension	0.591" L x 0.620" W (15.00mm x 15.75mm)
Series	WE-UNIT, MID-OLTI	Packaging	Tray
Other Names	1297-1119	Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Intended Chipset	-	Inductance @ Frequency	960µH @ 100kHz
Height - Seated (Max)	0.732" (18.59mm)	Frequency	68 ~ 110kHz
Footprint	0.591" L x 0.620" W (15.00mm x 15.75mm)	Chipset Manufacturer	-
Applications	Isolation
