Home > Products > Transformers > Switching Converter, SMPS Transformers > 750311525

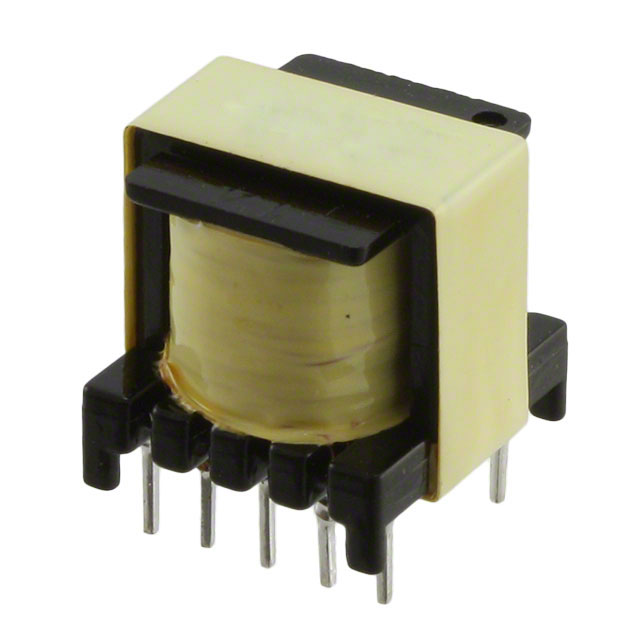

750311525

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 750311525 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	750311525
Manufacturer	Midcom / Wurth Electronics
Description	TRANS FLYBACK SSL2101 700UH
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 17586 pcs
Reference Price (In US Dollars)	100 pcs
Reference Price (In US Dollars)	$2.101

Product parameter
Data sheet

Product parameter

Part Number	750311525	Manufacturer	Midcom / Wurth Electronics
Description	TRANS FLYBACK SSL2101 700UH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	17586 pcs	Data sheet	750311525 Drawing
Category	Transformers	Voltage - Primary	120 ~ 375V
Voltage - Isolation	2000Vrms	Voltage - Auxiliary	-
Type	For AC/DC Converters	Size / Dimension	0.580" L x 0.580" W (14.73mm x 14.73mm)
Series	WE-UNIT, MID-OLNXP	Packaging	Tray
Other Names	732-2901	Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Intended Chipset	SSL2101	Inductance @ Frequency	700µH @ 10kHz
Height - Seated (Max)	0.605" (15.37mm)	Frequency	100kHz
Footprint	0.580" L x 0.580" W (14.73mm x 14.73mm)	Chipset Manufacturer	NXP Semiconductors
Applications	LED Drivers, AC/DC SMPS
