Home > Products > Transformers > Switching Converter, SMPS Transformers > 750311524

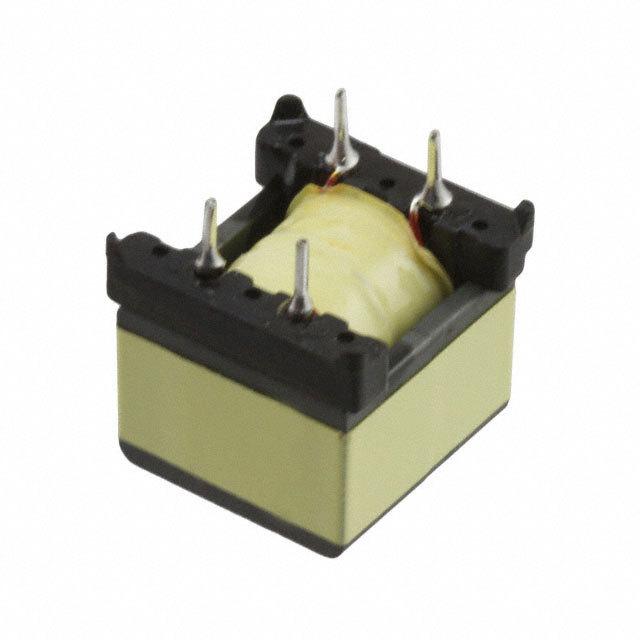

750311524

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 750311524 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	750311524
Manufacturer	Midcom / Wurth Electronics
Description	TRANS BUCK SSL2101 95UH RAD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 19004 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	50 pcs	100 pcs	500 pcs
Reference Price (In US Dollars)	$2.116	$2.088	$1.957	$1.761	$1.565

Product parameter
Data sheet

Product parameter

Part Number	750311524	Manufacturer	Midcom / Wurth Electronics
Description	TRANS BUCK SSL2101 95UH RAD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	19004 pcs	Data sheet	750311524 Drawing
Category	Transformers	Voltage - Primary	230V
Voltage - Isolation	1000Vrms	Voltage - Auxiliary	-
Type	For AC/DC Converters	Size / Dimension	0.550" L x 0.550" W (13.97mm x 13.97mm)
Series	MID-LLIT	Packaging	Tray
Other Names	732-2900	Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Intended Chipset	SSL2101	Inductance @ Frequency	180µH @ 100kHz, 95µH @ 100kHz
Height - Seated (Max)	0.505" (12.83mm)	Frequency	-
Footprint	0.550" L x 0.550" W (13.97mm x 13.97mm)	Chipset Manufacturer	NXP Semiconductors
Applications	LED Drivers, AC/DC SMPS
