UPS5100E3/TR13

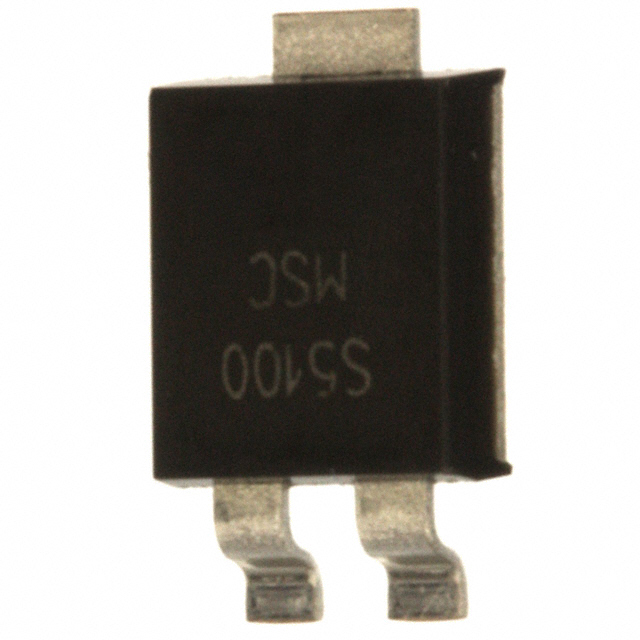

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UPS5100E3/TR13 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy UPS5100E3/TR13 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | UPS5100E3/TR13 |
|---|---|
| Manufacturer | Microsemi |
| Description | DIODE SCHOTTKY 100V 5A POWERMITE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.48 | $0.426 | $0.337 | $0.261 | $0.206 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | UPS5100E3/TR13 | Manufacturer | Microsemi |
|---|---|---|---|
| Description | DIODE SCHOTTKY 100V 5A POWERMITE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 100379 pcs | Data sheet | UPS5100e3 |
| Category | Discrete Semiconductor Products | Voltage - Forward (Vf) (Max) @ If | 810mV @ 5A |
| Voltage - DC Reverse (Vr) (Max) | 100V | Supplier Device Package | Powermite 3 |
| Speed | Fast Recovery = 200mA (Io) | Series | - |
| Packaging | Cut Tape (CT) | Package / Case | Powermite®3 |
| Other Names | UPS5100E3/TR13CT UPS5100E3CT UPS5100E3CT-ND |
Operating Temperature - Junction | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Diode Type | Schottky |
| Detailed Description | Diode Schottky 100V 5A Surface Mount Powermite 3 | Current - Reverse Leakage @ Vr | 200µA @ 100V |
| Current - Average Rectified (Io) | 5A | Capacitance @ Vr, F | 150pF @ 4V, 1MHz |
| Base Part Number | UPS5100 |
