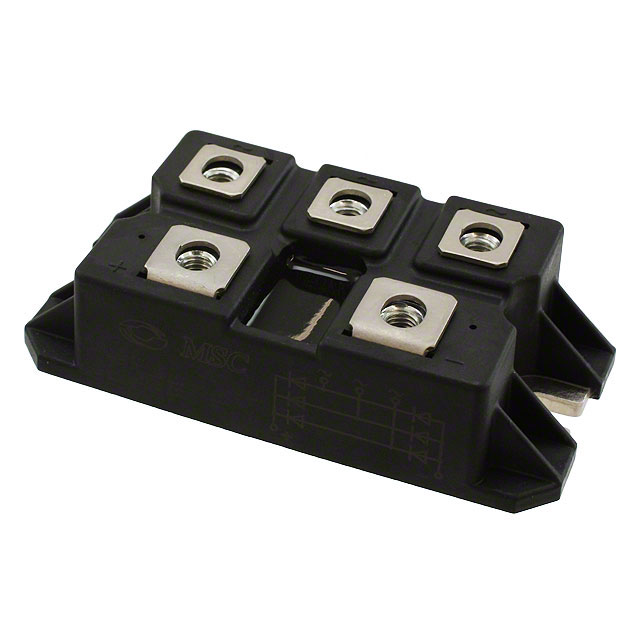

MSDM75-16
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MSDM75-16 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MSDM75-16 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MSDM75-16 |
|---|---|
| Manufacturer | Microsemi |
| Description | MOD BRIDGE 3PH 1600V 75A M2-1 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MSDM75-16 | Manufacturer | Microsemi |
|---|---|---|---|
| Description | MOD BRIDGE 3PH 1600V 75A M2-1 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5370 pcs | Data sheet | MSDM75 |
| Category | Discrete Semiconductor Products | Voltage - Peak Reverse (Max) | 1.6kV |
| Voltage - Forward (Vf) (Max) @ If | 1.6V @ 150A | Technology | Standard |
| Supplier Device Package | M2-1 | Series | - |
| Packaging | Bulk | Package / Case | Module |
| Operating Temperature | -40°C ~ 150°C (TJ) | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Diode Type | Three Phase | Detailed Description | Bridge Rectifier Three Phase Standard 1.6kV Chassis Mount M2-1 |
| Current - Reverse Leakage @ Vr | 500µA @ 1600V | Current - Average Rectified (Io) | 75A |
