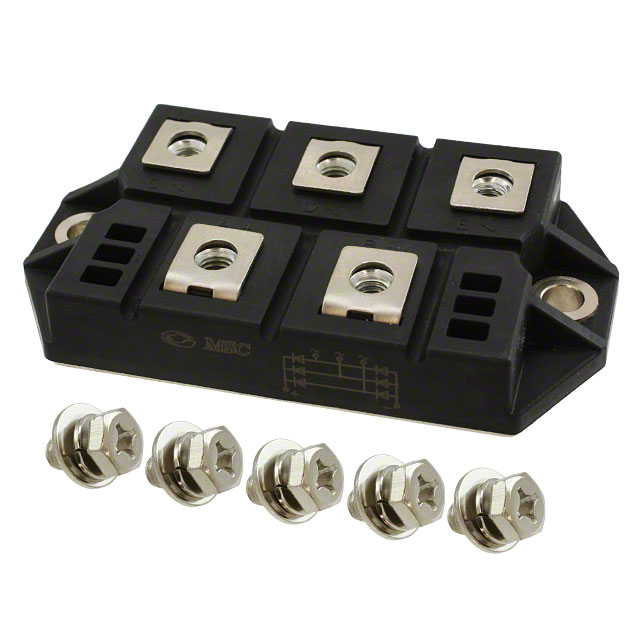

MSDM200-16
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MSDM200-16 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MSDM200-16 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MSDM200-16 |
|---|---|
| Manufacturer | Microsemi |
| Description | POWER MOD RECT BRIDGE 3PH M3-1 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MSDM200-16 | Manufacturer | Microsemi |
|---|---|---|---|
| Description | POWER MOD RECT BRIDGE 3PH M3-1 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4069 pcs | Data sheet | MSDM200 |
| Category | Discrete Semiconductor Products | Voltage - Peak Reverse (Max) | 1.6kV |
| Voltage - Forward (Vf) (Max) @ If | 1.45V @ 200A | Technology | Standard |
| Supplier Device Package | M3-1 | Series | - |
| Packaging | Bulk | Package / Case | M3-1 |
| Other Names | MSDM20016 | Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Diode Type | Three Phase |
| Detailed Description | Bridge Rectifier Three Phase Standard 1.6kV Chassis Mount M3-1 | Current - Reverse Leakage @ Vr | 500µA @ 1600V |
| Current - Average Rectified (Io) | 200A |
