JANTX2N6298

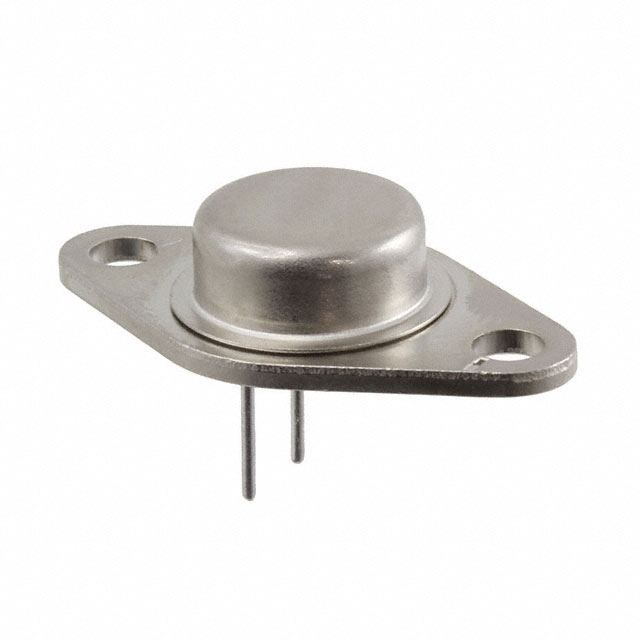

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JANTX2N6298 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JANTX2N6298 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JANTX2N6298 |
|---|---|
| Manufacturer | Microsemi |
| Description | TRANS PNP DARL 60V 8A TO-66 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JANTX2N6298 | Manufacturer | Microsemi |
|---|---|---|---|
| Description | TRANS PNP DARL 60V 8A TO-66 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5946 pcs | Data sheet | 2N6298, 2N6299 |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 60V |
| Vce Saturation (Max) @ Ib, Ic | 2V @ 80mA, 8A | Transistor Type | PNP - Darlington |
| Series | Military, MIL-PRF-19500/540 | Power - Max | 64W |
| Packaging | Bulk | Package / Case | TO-213AA, TO-66-2 |
| Other Names | 1086-15537 1086-15537-MIL |
Operating Temperature | -65°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Frequency - Transition | - |
| Detailed Description | Bipolar (BJT) Transistor PNP - Darlington 60V 8A 64W Through Hole | DC Current Gain (hFE) (Min) @ Ic, Vce | 750 @ 4A, 3V |
| Current - Collector Cutoff (Max) | 500µA | Current - Collector (Ic) (Max) | 8A |
