JANTX2N6284

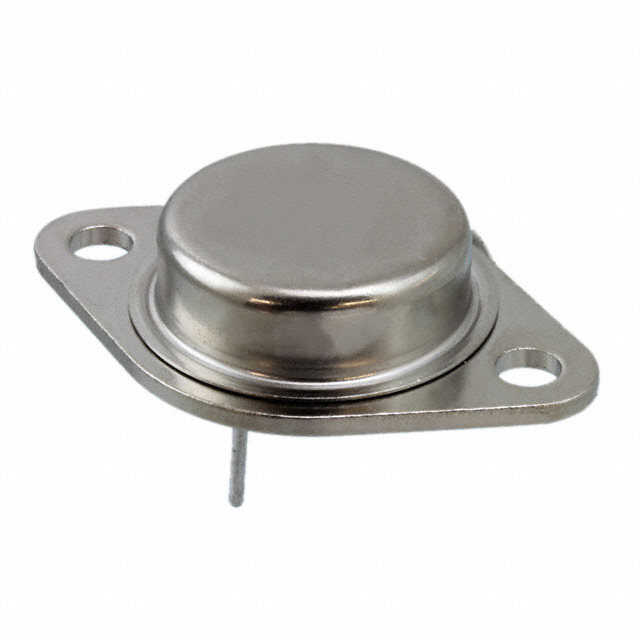

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JANTX2N6284 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JANTX2N6284 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JANTX2N6284 |
|---|---|
| Manufacturer | Microsemi |
| Description | TRANS NPN DARL 100V 20A TO-3 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $30.225 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JANTX2N6284 | Manufacturer | Microsemi |
|---|---|---|---|
| Description | TRANS NPN DARL 100V 20A TO-3 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 1254 pcs | Data sheet | 2N6283,2N6284 |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 100V |
| Vce Saturation (Max) @ Ib, Ic | 3V @ 200mA, 20A | Transistor Type | NPN - Darlington |
| Supplier Device Package | TO-204AA (TO-3) | Series | Military, MIL-PRF-19500/504 |
| Power - Max | 175W | Packaging | Bulk |
| Package / Case | TO-204AA, TO-3 | Other Names | 1086-15536 1086-15536-MIL |
| Operating Temperature | -65°C ~ 200°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 20 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Frequency - Transition | - |
| Detailed Description | Bipolar (BJT) Transistor NPN - Darlington 100V 20A 175W Through Hole TO-204AA (TO-3) | DC Current Gain (hFE) (Min) @ Ic, Vce | 1250 @ 10A, 3V |
| Current - Collector Cutoff (Max) | 1mA | Current - Collector (Ic) (Max) | 20A |
