JANTX2N3792

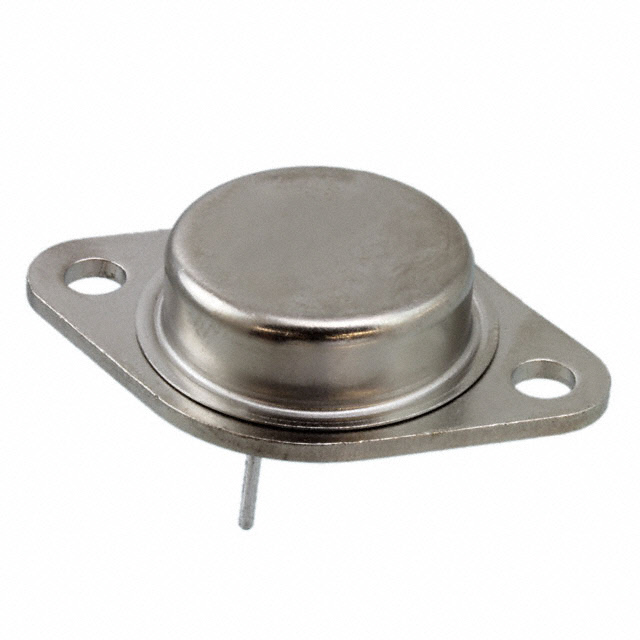

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JANTX2N3792 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JANTX2N3792 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JANTX2N3792 |
|---|---|
| Manufacturer | Microsemi |
| Description | TRANS PNP 80V 10A TO-3 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $28.103 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JANTX2N3792 | Manufacturer | Microsemi |
|---|---|---|---|
| Description | TRANS PNP 80V 10A TO-3 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 1228 pcs | Data sheet | 2N3791, 2N3792 |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 80V |
| Vce Saturation (Max) @ Ib, Ic | 2.5V @ 2A, 10A | Transistor Type | PNP |
| Supplier Device Package | TO-3 | Series | Military, MIL-PRF-19500/379 |
| Power - Max | 5W | Packaging | Bulk |
| Package / Case | TO-204AA, TO-3 | Other Names | 1086-15516 1086-15516-MIL |
| Operating Temperature | -65°C ~ 200°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 20 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Frequency - Transition | - |
| Detailed Description | Bipolar (BJT) Transistor PNP 80V 10A 5W Through Hole TO-3 | DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 3A, 2V |
| Current - Collector Cutoff (Max) | 5mA | Current - Collector (Ic) (Max) | 10A |
