JANTX2N3772

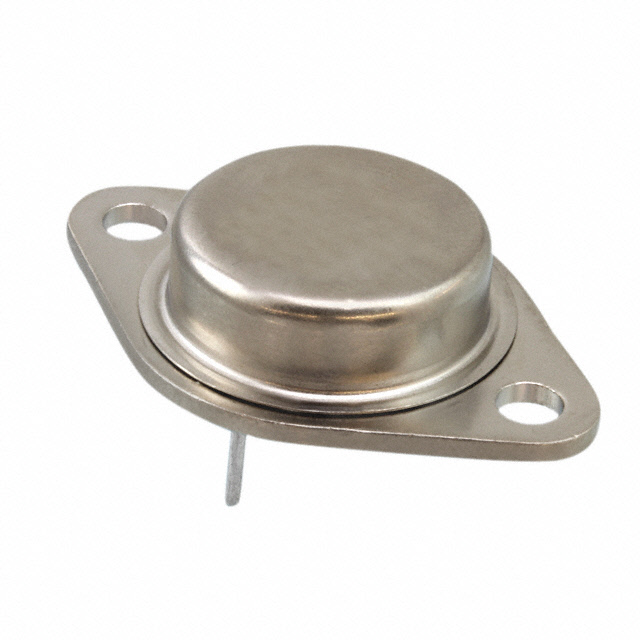

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JANTX2N3772 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JANTX2N3772 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JANTX2N3772 |
|---|---|
| Manufacturer | Microsemi |
| Description | TRANS NPN 60V 20A TO-3 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $184.445 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JANTX2N3772 | Manufacturer | Microsemi |
|---|---|---|---|
| Description | TRANS NPN 60V 20A TO-3 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 210 pcs | Data sheet | 2N3771,2N3772 |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 60V |
| Vce Saturation (Max) @ Ib, Ic | 4V @ 4A, 20A | Transistor Type | NPN |
| Supplier Device Package | TO-3 | Series | Military, MIL-PRF-19500/518 |
| Power - Max | 6W | Packaging | Bulk |
| Package / Case | TO-204AA, TO-3 | Other Names | 1086-15515 1086-15515-MIL |
| Operating Temperature | -65°C ~ 200°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Frequency - Transition | - | Detailed Description | Bipolar (BJT) Transistor NPN 60V 20A 6W Through Hole TO-3 |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 15 @ 10A, 4V | Current - Collector Cutoff (Max) | 5mA |
| Current - Collector (Ic) (Max) | 20A |
