JANS1N5806US

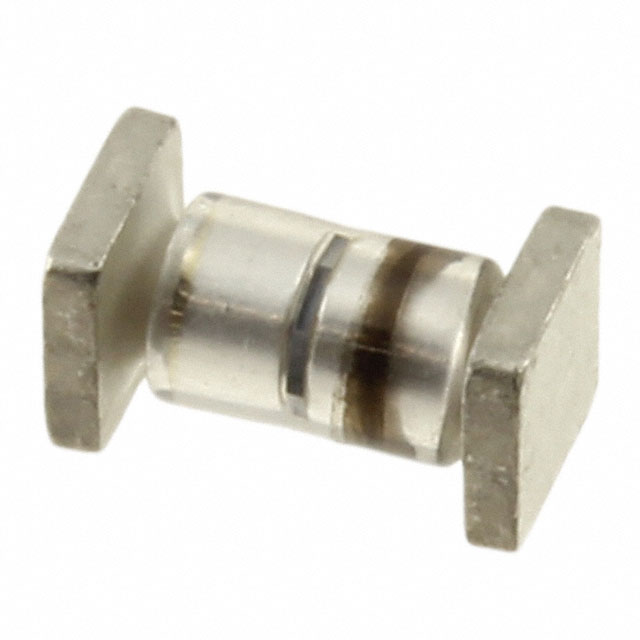

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JANS1N5806US with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JANS1N5806US with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JANS1N5806US |
|---|---|
| Manufacturer | Microsemi |
| Description | DIODE GEN PURP 150V 1A D5A |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $21.409 | $20.019 | $17.358 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | JANS1N5806US | Manufacturer | Microsemi |
|---|---|---|---|
| Description | DIODE GEN PURP 150V 1A D5A | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 2006 pcs | Data sheet | 1N5802, 04US, 06US and URS |
| Category | Discrete Semiconductor Products | Voltage - Forward (Vf) (Max) @ If | 875mV @ 1A |
| Voltage - DC Reverse (Vr) (Max) | 150V | Supplier Device Package | D-5A |
| Speed | Fast Recovery = 200mA (Io) | Series | Military, MIL-PRF-19500/477 |
| Reverse Recovery Time (trr) | 25ns | Packaging | Bulk |
| Package / Case | SQ-MELF, A | Other Names | 1086-15144 1086-15144-MIL |
| Operating Temperature - Junction | -65°C ~ 175°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Diode Type | Standard |
| Detailed Description | Diode Standard 150V 1A Surface Mount D-5A | Current - Reverse Leakage @ Vr | 1µA @ 150V |
| Current - Average Rectified (Io) | 1A | Capacitance @ Vr, F | 25pF @ 10V, 1MHz |
