APTML100U60R020T1AG

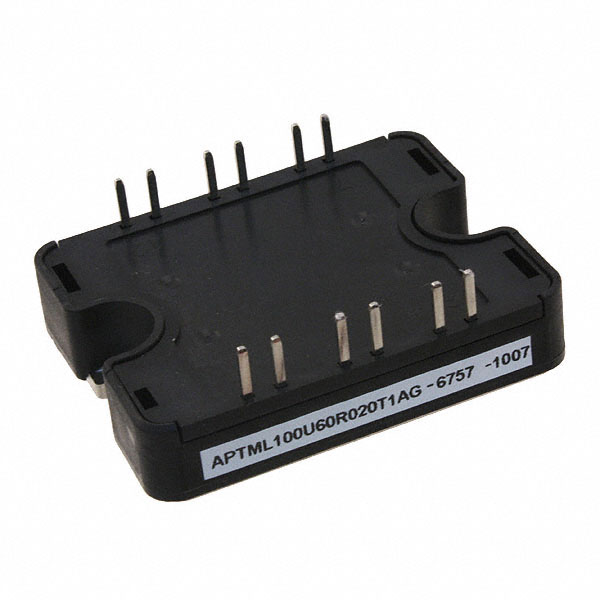

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APTML100U60R020T1AG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APTML100U60R020T1AG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APTML100U60R020T1AG |
|---|---|
| Manufacturer | Microsemi |
| Description | MOSFET N-CH 1000V 20A SP1 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | |||
|---|---|---|---|---|---|
| $41.202 | $38.508 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | APTML100U60R020T1AG | Manufacturer | Microsemi |
|---|---|---|---|
| Description | MOSFET N-CH 1000V 20A SP1 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 804 pcs | Data sheet | Power Products CatalogAPTML100U60R020T1AG |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4V @ 2.5mA |
| Vgs (Max) | ±30V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | SP1 | Series | - |
| Rds On (Max) @ Id, Vgs | 720 mOhm @ 10A, 10V | Power Dissipation (Max) | 520W (Tc) |
| Packaging | Bulk | Package / Case | SP1 |
| Operating Temperature | -40°C ~ 150°C (TJ) | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 32 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 6000pF @ 25V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Drain to Source Voltage (Vdss) | 1000V |
| Detailed Description | N-Channel 1000V 20A (Tc) 520W (Tc) Chassis Mount SP1 | Current - Continuous Drain (Id) @ 25°C | 20A (Tc) |
