APTMC120TAM33CTPAG

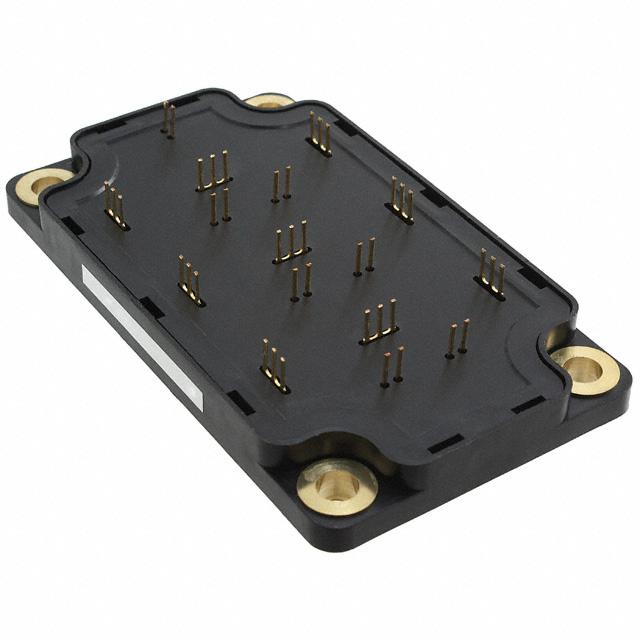

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APTMC120TAM33CTPAG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APTMC120TAM33CTPAG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APTMC120TAM33CTPAG |
|---|---|
| Manufacturer | Microsemi |
| Description | MOSFET 6N-CH 1200V 78A SP6-P |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $312.421 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | APTMC120TAM33CTPAG | Manufacturer | Microsemi |
|---|---|---|---|
| Description | MOSFET 6N-CH 1200V 78A SP6-P | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 98 pcs | Data sheet | APTMC120TAM33CTPAG |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.2V @ 3mA (Typ) |
| Supplier Device Package | SP6-P | Series | - |
| Rds On (Max) @ Id, Vgs | 33 mOhm @ 60A, 20V | Power - Max | 370W |
| Packaging | Bulk | Package / Case | SP6 |
| Other Names | APTMC120TAM33CTPACC6543 | Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 32 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 2850pF @ 1000V | Gate Charge (Qg) (Max) @ Vgs | 148nC @ 20V |
| FET Type | 6 N-Channel (3-Phase Bridge) | FET Feature | Silicon Carbide (SiC) |
| Drain to Source Voltage (Vdss) | 1200V (1.2kV) | Detailed Description | Mosfet Array 6 N-Channel (3-Phase Bridge) 1200V (1.2kV) 78A (Tc) 370W Chassis Mount SP6-P |
| Current - Continuous Drain (Id) @ 25°C | 78A (Tc) |
