APTMC120AM16CD3AG

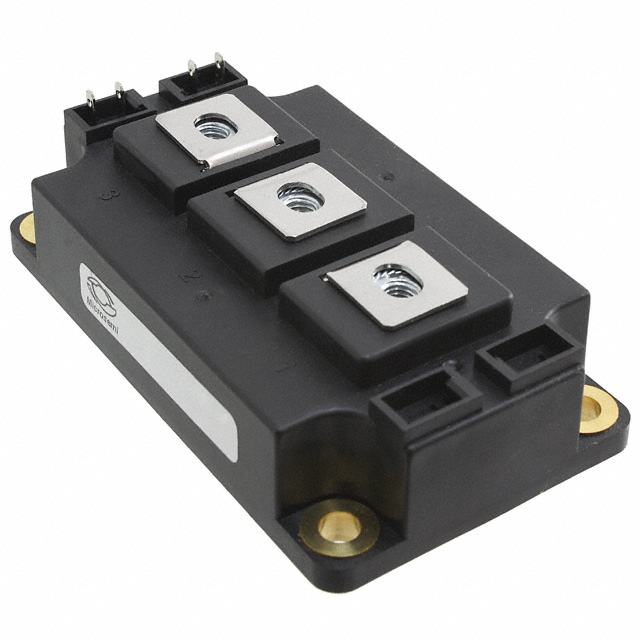

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APTMC120AM16CD3AG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APTMC120AM16CD3AG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APTMC120AM16CD3AG |
|---|---|
| Manufacturer | Microsemi |
| Description | MOSFET 2N-CH 1200V 131A D3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $188.234 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | APTMC120AM16CD3AG | Manufacturer | Microsemi |
|---|---|---|---|
| Description | MOSFET 2N-CH 1200V 131A D3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 205 pcs | Data sheet | APTMC120AM16CD3AG |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.2V @ 5mA (Typ) |
| Supplier Device Package | D3 | Series | - |
| Rds On (Max) @ Id, Vgs | 20 mOhm @ 100A, 20V | Power - Max | 625W |
| Packaging | Bulk | Package / Case | D-3 Module |
| Operating Temperature | -40°C ~ 150°C (TJ) | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 32 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 4750pF @ 1000V |
| Gate Charge (Qg) (Max) @ Vgs | 246nC @ 20V | FET Type | 2 N-Channel (Half Bridge) |
| FET Feature | Silicon Carbide (SiC) | Drain to Source Voltage (Vdss) | 1200V (1.2kV) |
| Detailed Description | Mosfet Array 2 N-Channel (Half Bridge) 1200V (1.2kV) 131A (Tc) 625W Chassis Mount D3 | Current - Continuous Drain (Id) @ 25°C | 131A (Tc) |
