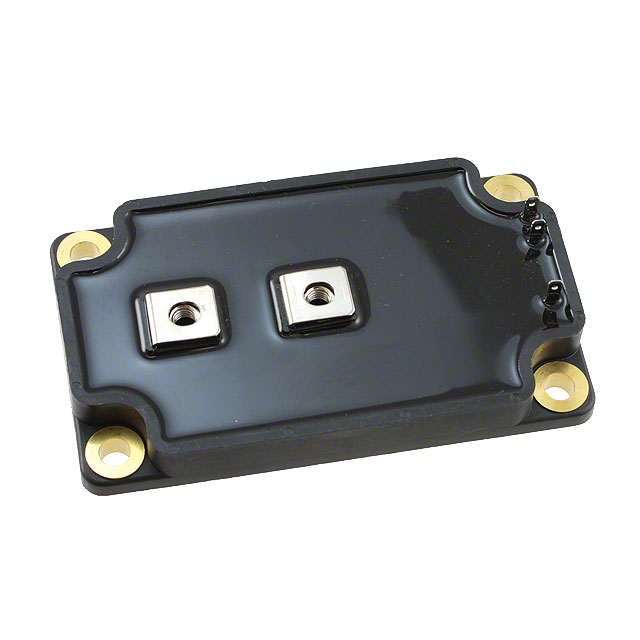

APTM50UM09FAG
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APTM50UM09FAG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APTM50UM09FAG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APTM50UM09FAG |
|---|---|
| Manufacturer | Microsemi |
| Description | MOSFET N-CH 500V 497A SP6 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $126.923 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | APTM50UM09FAG | Manufacturer | Microsemi |
|---|---|---|---|
| Description | MOSFET N-CH 500V 497A SP6 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 260 pcs | Data sheet | APTM50UM09FAGPower Products Catalog |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 5V @ 30mA |
| Vgs (Max) | ±30V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | SP6 | Series | - |
| Rds On (Max) @ Id, Vgs | 10 mOhm @ 248.5A, 10V | Power Dissipation (Max) | 5000W (Tc) |
| Packaging | Bulk | Package / Case | SP6 |
| Other Names | APTM50UM09FAGMI APTM50UM09FAGMI-ND |
Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 32 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 63300pF @ 25V | Gate Charge (Qg) (Max) @ Vgs | 1200nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Drain to Source Voltage (Vdss) | 500V |
| Detailed Description | N-Channel 500V 497A (Tc) 5000W (Tc) Chassis Mount SP6 | Current - Continuous Drain (Id) @ 25°C | 497A (Tc) |
