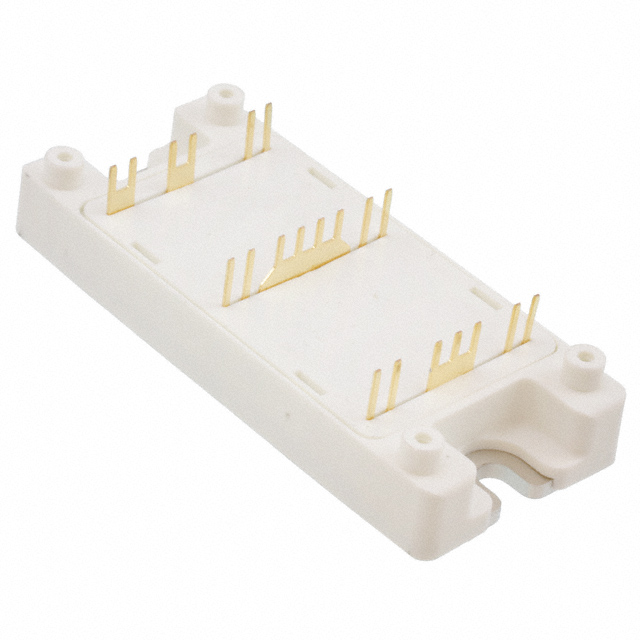

APTM100H45STG
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APTM100H45STG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APTM100H45STG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APTM100H45STG |
|---|---|
| Manufacturer | Microsemi |
| Description | MOSFET 4N-CH 1000V 18A SP4 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $49.381 | $46.153 | $44.539 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | APTM100H45STG | Manufacturer | Microsemi |
|---|---|---|---|
| Description | MOSFET 4N-CH 1000V 18A SP4 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 872 pcs | Data sheet | Power Products CatalogAPTM100H45STG |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 5V @ 2.5mA |
| Supplier Device Package | SP4 | Series | - |
| Rds On (Max) @ Id, Vgs | 540 mOhm @ 9A, 10V | Power - Max | 357W |
| Packaging | Bulk | Package / Case | SP4 |
| Operating Temperature | -40°C ~ 150°C (TJ) | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 32 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 4350pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 154nC @ 10V | FET Type | 4 N-Channel (H-Bridge) |
| FET Feature | Standard | Drain to Source Voltage (Vdss) | 1000V (1kV) |
| Detailed Description | Mosfet Array 4 N-Channel (H-Bridge) 1000V (1kV) 18A 357W Chassis Mount SP4 | Current - Continuous Drain (Id) @ 25°C | 18A |
