APTM100H18FG

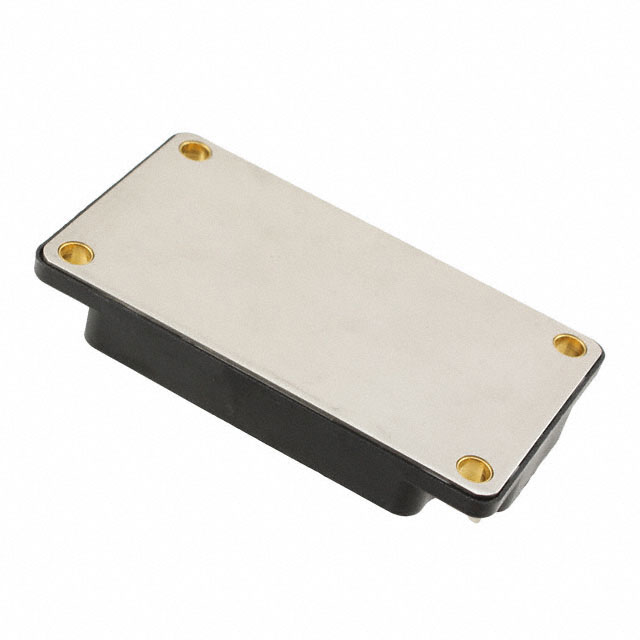

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APTM100H18FG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APTM100H18FG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APTM100H18FG |
|---|---|
| Manufacturer | Microsemi |
| Description | MOSFET 4N-CH 1000V 43A SP6 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $78.134 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | APTM100H18FG | Manufacturer | Microsemi |
|---|---|---|---|
| Description | MOSFET 4N-CH 1000V 43A SP6 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 451 pcs | Data sheet | APTM100H18FGPower Products Catalog |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 5V @ 5mA |
| Supplier Device Package | SP6 | Series | - |
| Rds On (Max) @ Id, Vgs | 210 mOhm @ 21.5A, 10V | Power - Max | 780W |
| Packaging | Bulk | Package / Case | SP6 |
| Operating Temperature | -40°C ~ 150°C (TJ) | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 32 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 10400pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 372nC @ 10V | FET Type | 4 N-Channel (H-Bridge) |
| FET Feature | Standard | Drain to Source Voltage (Vdss) | 1000V (1kV) |
| Detailed Description | Mosfet Array 4 N-Channel (H-Bridge) 1000V (1kV) 43A 780W Chassis Mount SP6 | Current - Continuous Drain (Id) @ 25°C | 43A |
