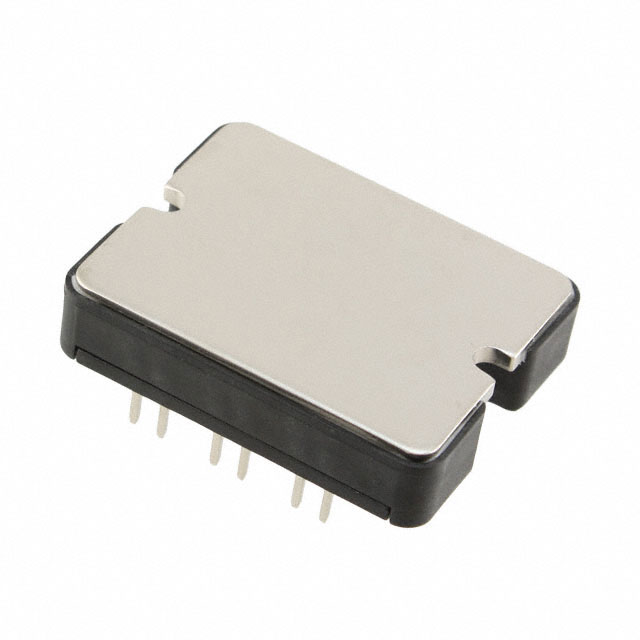

APTGF100DA120T1G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APTGF100DA120T1G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APTGF100DA120T1G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APTGF100DA120T1G |
|---|---|
| Manufacturer | Microsemi |
| Description | IGBT 1200V 130A 735W SP1 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | APTGF100DA120T1G | Manufacturer | Microsemi |
|---|---|---|---|
| Description | IGBT 1200V 130A 735W SP1 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5633 pcs | Data sheet | Power Products CatalogAPTGF100DA120T1G |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Vce(on) (Max) @ Vge, Ic | 3.7V @ 15V, 100A | Supplier Device Package | SP1 |
| Series | - | Power - Max | 735W |
| Package / Case | SP1 | Operating Temperature | - |
| NTC Thermistor | Yes | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Cies) @ Vce | 6.5nF @ 25V | Input | Standard |
| IGBT Type | NPT | Detailed Description | IGBT Module NPT Single 1200V 130A 735W Chassis Mount SP1 |
| Current - Collector Cutoff (Max) | 250µA | Current - Collector (Ic) (Max) | 130A |
| Configuration | Single |
