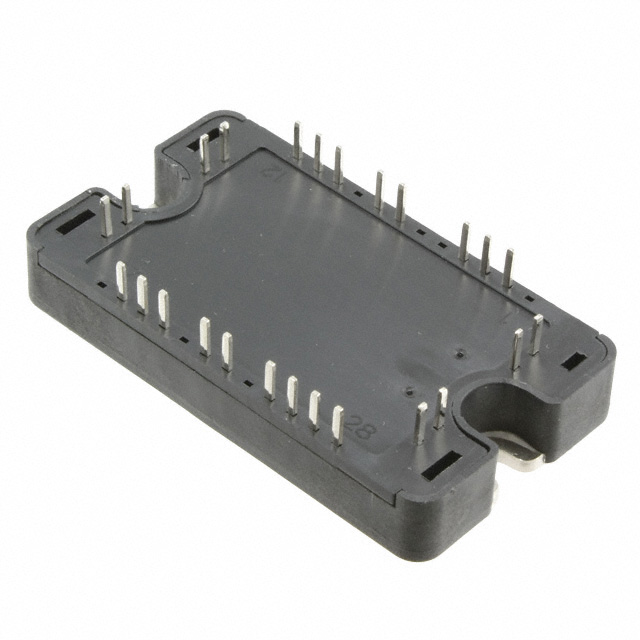

APTGF100A120T3WG
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy APTGF100A120T3WG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy APTGF100A120T3WG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | APTGF100A120T3WG |
|---|---|
| Manufacturer | Microsemi |
| Description | IGBT NPT PHASE 1200V 130A SP3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
Product parameter
| Part Number | APTGF100A120T3WG | Manufacturer | Microsemi |
|---|---|---|---|
| Description | IGBT NPT PHASE 1200V 130A SP3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5667 pcs | Data sheet | |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Vce(on) (Max) @ Vge, Ic | 3.7V @ 15V, 100A | Supplier Device Package | SP3 |
| Series | - | Power - Max | 657W |
| Package / Case | SP3 | Operating Temperature | - |
| NTC Thermistor | Yes | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Cies) @ Vce | 6.5nF @ 25V | Input | Standard |
| IGBT Type | NPT | Detailed Description | IGBT Module NPT Half Bridge 1200V 130A 657W Chassis Mount SP3 |
| Current - Collector Cutoff (Max) | 250µA | Current - Collector (Ic) (Max) | 130A |
| Configuration | Half Bridge |
