2N3700

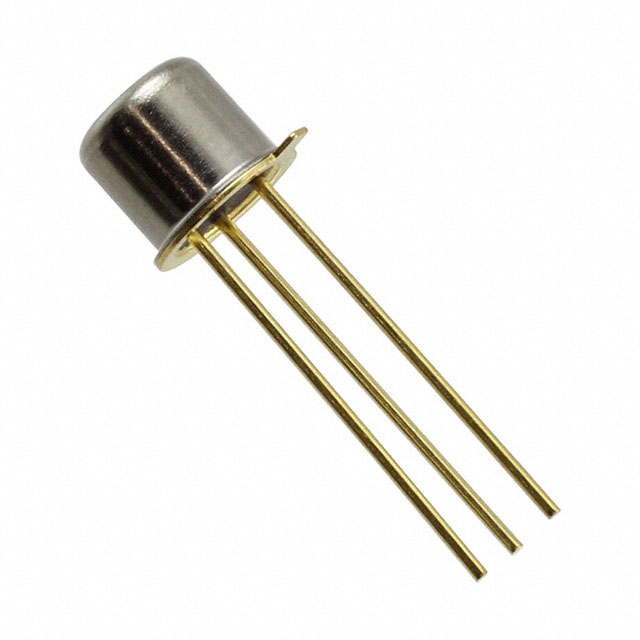

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2N3700 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2N3700 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2N3700 |
|---|---|
| Manufacturer | Microsemi |
| Description | TRANS NPN 80V 1A TO18 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $2.419 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2N3700 | Manufacturer | Microsemi |
|---|---|---|---|
| Description | TRANS NPN 80V 1A TO18 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 14328 pcs | Data sheet | 2N3700 |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 80V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 50mA, 500mA | Transistor Type | NPN |
| Supplier Device Package | TO-18 | Series | - |
| Power - Max | 500mW | Packaging | Bulk |
| Package / Case | TO-206AA, TO-18-3 Metal Can | Other Names | 2N3700MS |
| Operating Temperature | -65°C ~ 200°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Frequency - Transition | - | Detailed Description | Bipolar (BJT) Transistor NPN 80V 1A 500mW Through Hole TO-18 |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 50 @ 500mA, 10V | Current - Collector Cutoff (Max) | 10nA |
| Current - Collector (Ic) (Max) | 1A |
