SDB157-TP

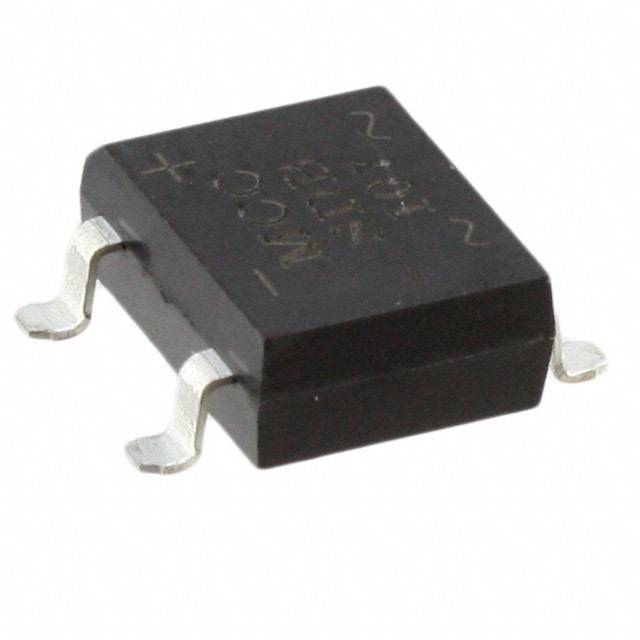

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SDB157-TP with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SDB157-TP with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SDB157-TP |
|---|---|
| Manufacturer | Micro Commercial Components (MCC) |
| Description | DIODE BRIDGE 1.5A 1000V SDB-1 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1500 pcs | 3000 pcs | 7500 pcs | 10500 pcs | 37500 pcs |
|---|---|---|---|---|---|
| $0.074 | $0.067 | $0.063 | $0.059 | $0.055 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | SDB157-TP | Manufacturer | Micro Commercial Components (MCC) |
|---|---|---|---|
| Description | DIODE BRIDGE 1.5A 1000V SDB-1 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 425585 pcs | Data sheet | SDB151-157 |
| Category | Discrete Semiconductor Products | Voltage - Peak Reverse (Max) | 1kV |
| Voltage - Forward (Vf) (Max) @ If | 1.1V @ 1.5A | Technology | Standard |
| Supplier Device Package | SDB-1 | Series | - |
| Packaging | Tape & Reel (TR) | Package / Case | 4-SMD, Gull Wing |
| Other Names | SDB157-TPMSTR SDB157TP |
Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Diode Type | Single Phase | Detailed Description | Bridge Rectifier Single Phase Standard 1kV Surface Mount SDB-1 |
| Current - Reverse Leakage @ Vr | 10µA @ 1000V | Current - Average Rectified (Io) | 1.5A |
| Base Part Number | SDB157 |
