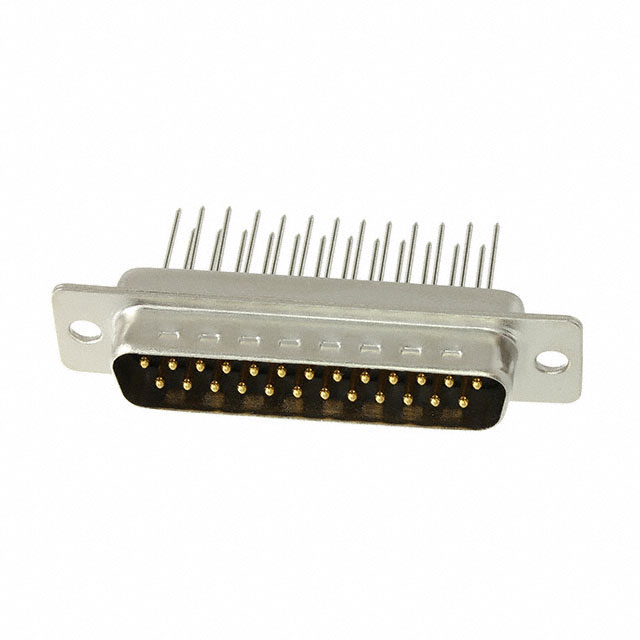

SDBG-25PF(55)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SDBG-25PF(55) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SDBG-25PF(55) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SDBG-25PF(55) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN D-SUB PLUG 25P PNL MNT SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.924 | $2.797 | $2.543 | $2.415 | $2.352 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | SDBG-25PF(55) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN D-SUB PLUG 25P PNL MNT SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16242 pcs | Data sheet | SD Series |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 350V | Termination | Solder |
| Shell Size, Connector Layout | 3 (DB, B) | Shell Material, Finish | Steel, Nickel Plated |
| Series | SD | Packaging | Tray |
| Other Names | H122919 | Operating Temperature | - |
| Number of Rows | 2 | Number of Positions | 25 |
| Mounting Type | Panel Mount, Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT) | Flange Feature | Housing/Shell (Unthreaded) |
| Features | Grounding Indents | Detailed Description | 25 Position D-Sub Plug, Male Pins Connector |
| Current Rating | 3A | Contact Type | Signal |
| Contact Material | Phosphor Bronze | Contact Form | - |
| Contact Finish Thickness | 8.00µin (0.203µm) | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub |
| Color | Black | Backset Spacing | - |
