Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > ADM00821

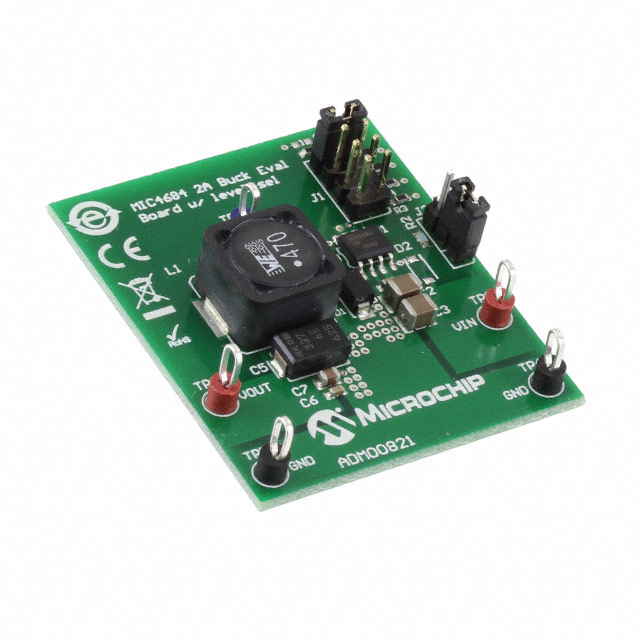

ADM00821

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ADM00821 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ADM00821
Manufacturer	Micrel / Microchip Technology
Description	MIC4684 2A BUCK W/ LEVEL SELECT
Lead Free Status / RoHS Status	Not applicable / Not applicable

~~In Stock~~ 2337 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$16.355

Product parameter
Data sheet

Product parameter

Part Number	ADM00821	Manufacturer	Micrel / Microchip Technology
Description	MIC4684 2A BUCK W/ LEVEL SELECT	Lead Free Status / RoHS Status	Not applicable / Not applicable
Quantity Available	2337 pcs	Data sheet	ADM00821, ADM00823
Category	Development Boards, Kits, Programmers	Voltage - Output	1.8V, 2.5V, 3.3V or 5V
Voltage - Input	4 V ~ 30 V	Utilized IC / Part	MIC4684
Supplied Contents	Board(s)	Series	SuperSwitcher™
Regulator Topology	Buck	Outputs and Type	1, Non-Isolated
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Main Purpose	DC/DC, Step Down
Lead Free Status / RoHS Status	Not applicable / Not applicable	Frequency - Switching	200kHz
Detailed Description	MIC4684 SuperSwitcher™ DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board	Current - Output	2A
Board Type	Fully Populated
