Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > ADM00811

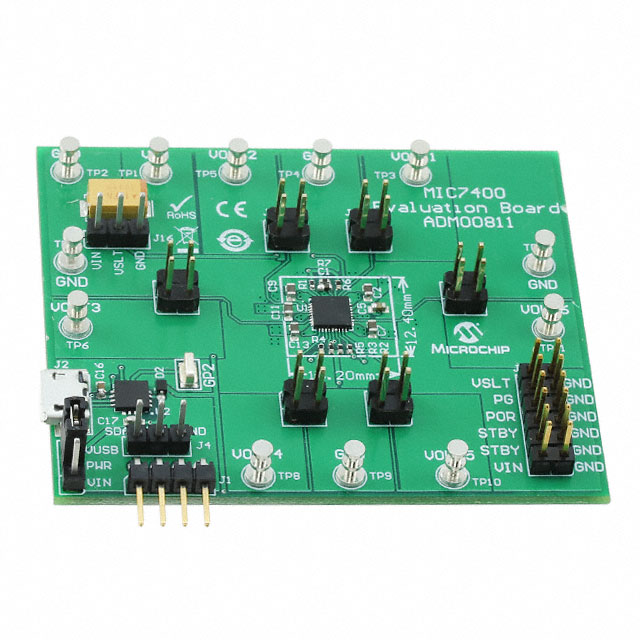

ADM00811

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ADM00811 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ADM00811
Manufacturer	Micrel / Microchip Technology
Description	EVAL BOARD FOR MIC74005
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1492 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$26.442

Product parameter
Data sheet

Product parameter

Part Number	ADM00811	Manufacturer	Micrel / Microchip Technology
Description	EVAL BOARD FOR MIC74005	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1492 pcs	Data sheet	MIC7400 Evaluation Board~MIC7400,1 Sell Sheet MIC7400,1 Programming Board Guide
Category	Development Boards, Kits, Programmers	Voltage - Output	1.05V, 1.1V, 1.25V, 1.8V, 1.8V or 12V
Voltage - Input	2.4 V ~ 5.5 V	Utilized IC / Part	MIC74005
Supplied Contents	Board(s)	Series	-
Regulator Topology	Buck-Boost	Outputs and Type	6, Non-Isolated
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Main Purpose	DC/DC, Step Up or Down
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency - Switching	2MHz
Detailed Description	MIC74005 - DC/DC, Step Up or Down 6, Non-Isolated Outputs Evaluation Board	Current - Output	3A, 1A, 800mA, 500mA, 500mA or 200mA
Board Type	Fully Populated
