EJ504B

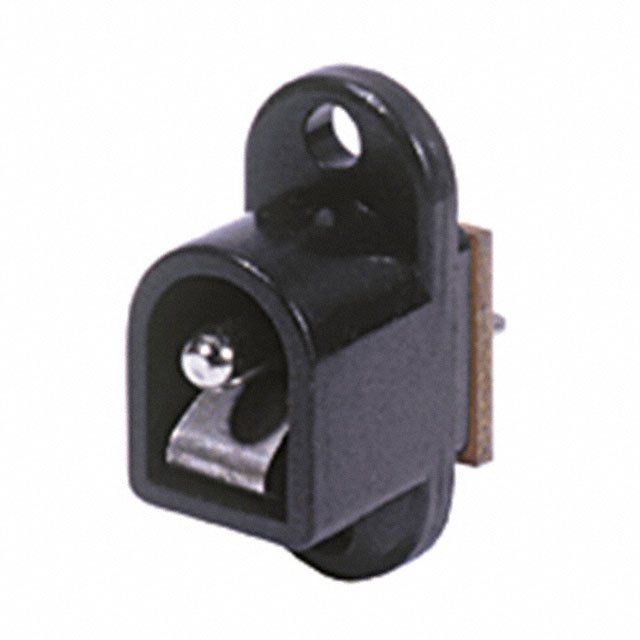

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EJ504B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EJ504B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EJ504B |
|---|---|
| Manufacturer | MPD (Memory Protection Devices) |
| Description | CONN PWR JACK 2.5X5.5MM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.522 | $0.46 | $0.397 | $0.325 | $0.288 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | EJ504B | Manufacturer | MPD (Memory Protection Devices) |
|---|---|---|---|
| Description | CONN PWR JACK 2.5X5.5MM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 83599 pcs | Data sheet | EJ504B Drawing |
| Category | Connectors, Interconnects | Voltage - Rated | 12VDC |
| Thread Size | - | Termination | Solder Eyelet(s) |
| Shielding | Unshielded | Series | - |
| Packaging | Bulk | Operating Temperature | - |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts | Mounting Type | Panel Mount |
| Mounting Feature | Flange | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Length/Depth | - | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Single Switch, Normally Closed | Insulation Color | - |
| Ingress Protection | - | Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") |
| Includes | - | Housing Material | Polybutylene Terephthalate (PBT) |
| Gender | Male | Features | - |
| Detailed Description | Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Panel Mount | Current Rating | 5A |
| Contact Material - Plating | Silver | Contact Material | Brass; Copper Alloy |
| Connector Type | Jack | Body Material | Brass |
| Body Color | Black | Actual Diameter | 0.098" (2.50mm ID) |
