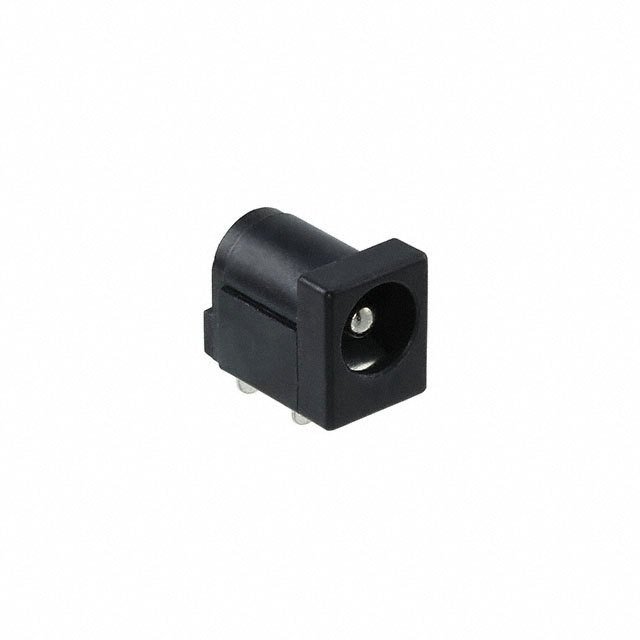

EJ503B
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EJ503B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EJ503B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EJ503B |
|---|---|
| Manufacturer | MPD (Memory Protection Devices) |
| Description | CONN PWR JACK 2.5X5.5MM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.955 | $0.866 | $0.742 | $0.618 | $0.53 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | EJ503B | Manufacturer | MPD (Memory Protection Devices) |
|---|---|---|---|
| Description | CONN PWR JACK 2.5X5.5MM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 58805 pcs | Data sheet | EJ503B Drawing |
| Category | Connectors, Interconnects | Voltage - Rated | 12VDC |
| Thread Size | - | Termination | Solder Eyelet(s) |
| Shielding | Unshielded | Series | - |
| Packaging | Bulk | Operating Temperature | - |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts | Mounting Type | Through Hole, Right Angle |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Length/Depth | - | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Single Switch, Normally Closed | Insulation Color | - |
| Ingress Protection | - | Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") |
| Includes | - | Housing Material | Polybutylene Terephthalate (PBT) |
| Gender | Male | Features | - |
| Detailed Description | Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Through Hole, Right Angle | Current Rating | 5A |
| Contact Material - Plating | Silver | Contact Material | Brass |
| Connector Type | Jack | Body Material | - |
| Body Color | - | Actual Diameter | 0.098" (2.50mm ID), 0.217" (5.50mm OD) |
