PM20206VBNN

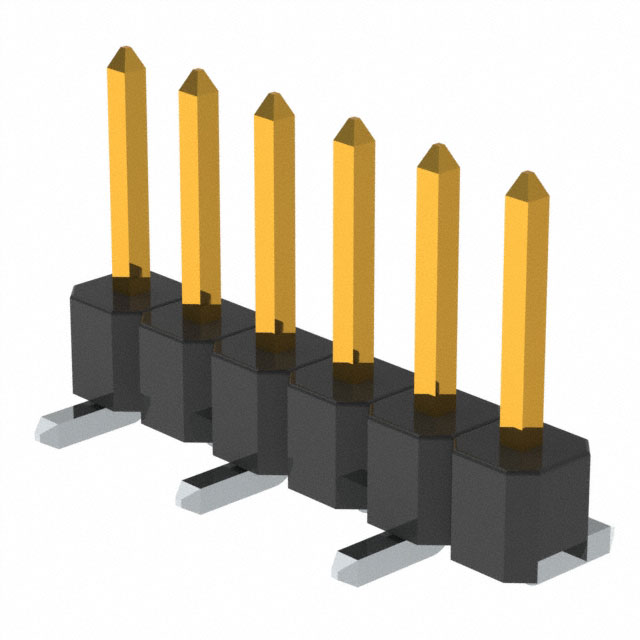

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PM20206VBNN with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PM20206VBNN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PM20206VBNN |
|---|---|
| Manufacturer | METZ CONNECT |
| Description | PIN HEADER, SMT, SINGLE ROW, .10 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.131 | $0.124 | $0.087 | $0.074 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.062 | $0.053 | $0.05 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PM20206VBNN | Manufacturer | METZ CONNECT |
|---|---|---|---|
| Description | PIN HEADER, SMT, SINGLE ROW, .10 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 408935 pcs | Data sheet | PM202xxVBNN Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | - |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 1849-1036 1849-1036-2 1849-1036-2-ND |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyethylene |
| Insulation Height | 0.098" (2.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 6 position 0.100" (2.54mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Zinc |
| Contact Length - Post | - | Contact Length - Mating | 0.236" (6.00mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
