DPBW06F-15

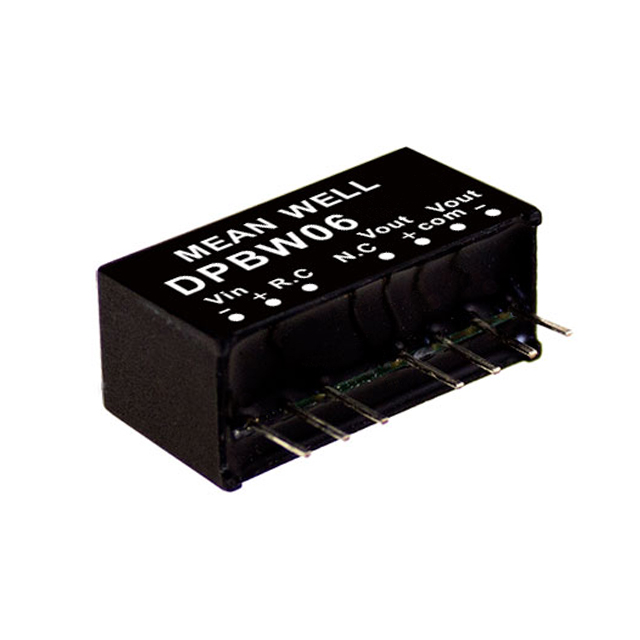

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DPBW06F-15 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DPBW06F-15 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DPBW06F-15 |
|---|---|
| Manufacturer | MEAN WELL |
| Description | DC DC CONVERTER +/-15V 6W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.558 | $3.503 | $3.449 | $3.341 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | DPBW06F-15 | Manufacturer | MEAN WELL |
|---|---|---|---|
| Description | DC DC CONVERTER +/-15V 6W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11037 pcs | Data sheet | SPBW06, DPBW06 Series Datasheet |
| Category | Power Supplies - Board Mount | Voltage - Output 4 | - |
| Voltage - Output 3 | - | Voltage - Output 2 | -15V |
| Voltage - Output 1 | 15V | Voltage - Isolation | 1500V |
| Voltage - Input (Min) | 9V | Voltage - Input (Max) | 36V |
| Type | Isolated Module | Supplier Device Package | - |
| Size / Dimension | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | Series | DPBW06 |
| Power (Watts) | 6W | Packaging | - |
| Package / Case | 8-SIP Module, 7 Leads | Other Names | 1866-1403 DPBW06F-15-ND |
| Operating Temperature | -40°C ~ 85°C (With Derating) | Number of Outputs | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Remote On/Off, OCP, SCP | Efficiency | 88% |
| Detailed Description | Isolated Module DC DC Converter 2 Output 15V -15V 200mA, 200mA 9V - 36V Input | Current - Output (Max) | 200mA, 200mA |
| Control Features | Enable, Active Low | Applications | ITE (Commercial) |
