DPBW03F-12

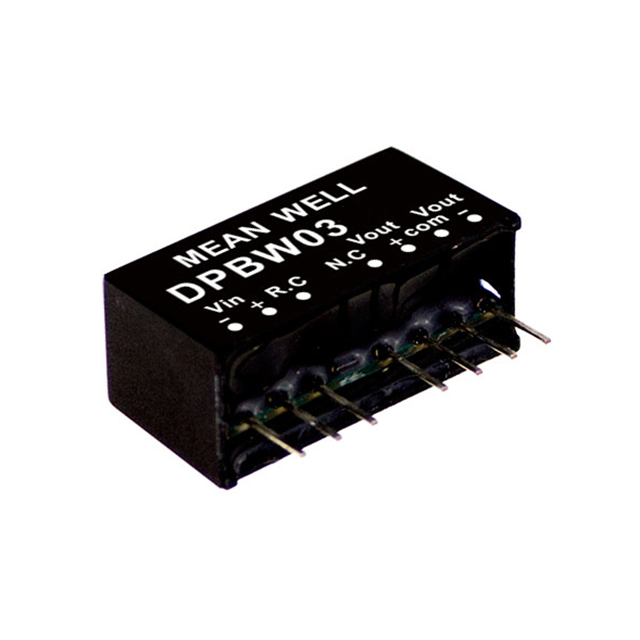

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DPBW03F-12 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DPBW03F-12 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DPBW03F-12 |
|---|---|
| Manufacturer | MEAN WELL |
| Description | DC DC CONVERTER +/-12V 3W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.215 | $3.165 | $3.116 | $3.019 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | DPBW03F-12 | Manufacturer | MEAN WELL |
|---|---|---|---|
| Description | DC DC CONVERTER +/-12V 3W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11572 pcs | Data sheet | SPBW03, DPBW03 Series Datasheet |
| Category | Power Supplies - Board Mount | Voltage - Output 4 | - |
| Voltage - Output 3 | - | Voltage - Output 2 | -12V |
| Voltage - Output 1 | 12V | Voltage - Isolation | 1500V |
| Voltage - Input (Min) | 9V | Voltage - Input (Max) | 36V |
| Type | Isolated Module | Supplier Device Package | - |
| Size / Dimension | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | Series | DPBW03 |
| Power (Watts) | 3W | Packaging | Tube |
| Package / Case | 8-SIP Module, 7 Leads | Other Names | 1866-1396 DPBW03F-12-ND |
| Operating Temperature | -40°C ~ 85°C (With Derating) | Number of Outputs | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Remote On/Off, OCP, SCP, UVLO | Efficiency | 83% |
| Detailed Description | Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 9V - 36V Input | Current - Output (Max) | 125mA, 125mA |
| Applications | ITE (Commercial) |
