4N37M

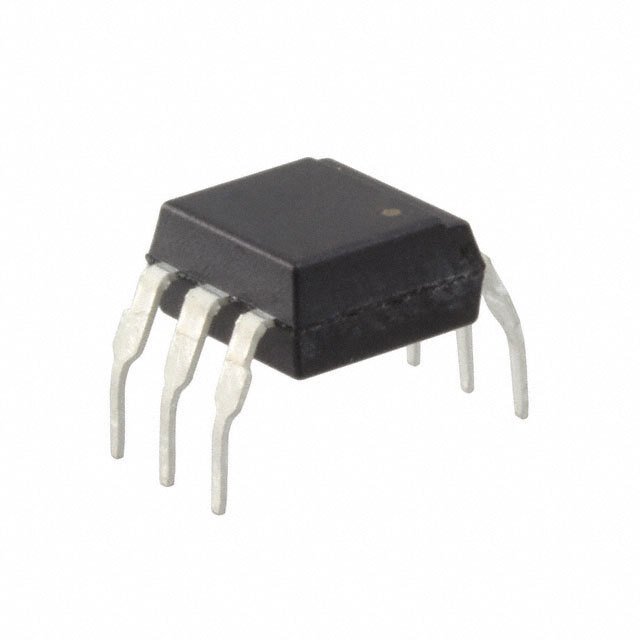

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 4N37M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 4N37M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 4N37M |
|---|---|
| Manufacturer | Lite-On, Inc. |
| Description | OPTOISO 1.5KV TRANS W/BASE 6DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5005 pcs | ||||
|---|---|---|---|---|---|
| $0.039 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 4N37M | Manufacturer | Lite-On, Inc. |
|---|---|---|---|
| Description | OPTOISO 1.5KV TRANS W/BASE 6DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 526321 pcs | Data sheet | 4N35/4N37 (M, S, S-TA1) |
| Category | Isolators | Voltage - Output (Max) | 30V |
| Voltage - Isolation | 1500Vrms | Voltage - Forward (Vf) (Typ) | 1.2V |
| Vce Saturation (Max) | 300mV | Turn On / Turn Off Time (Typ) | - |
| Supplier Device Package | 6-DIP | Series | - |
| Rise / Fall Time (Typ) | 3µs, 3µs | Packaging | Tube |
| Package / Case | 6-DIP (0.400", 10.16mm) | Output Type | Transistor with Base |
| Other Names | 160-1912-5 4N37MLT 4N37MLT-ND |
Operating Temperature | -55°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | DC |
| Detailed Description | Optoisolator Transistor with Base Output 1500Vrms 1 Channel 6-DIP | Current Transfer Ratio (Min) | 100% @ 10mA |
| Current Transfer Ratio (Max) | - | Current - Output / Channel | 100mA |
| Current - DC Forward (If) (Max) | 60mA |
